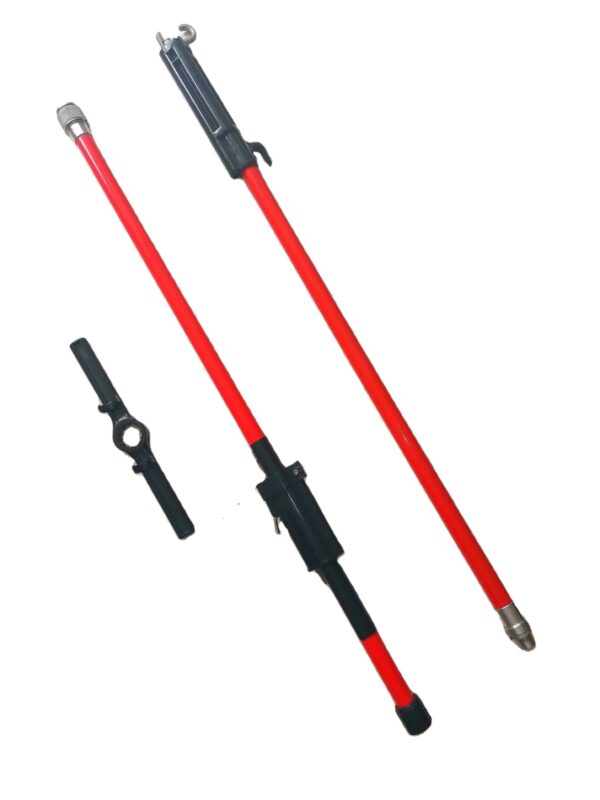

Shotgun Stick

Description

The shotgun stick is mainly used for live installation of wire clamps and grounding wire clamps, and is also suitable for installation of overhead and underground circuits and various terminal fittings. The shotgun stick is mainly characterized by good work applicability and convenient operation.

The rod body is made of high-strength epoxy resin knitted + pultrusion tube

, and all products have passed the power frequency test of 100kV/300mm.

All insulated parts of the shotgun stick are easy to wipe clean for easy maintenance and do not require on-site disassembly for cleaning, The shotgun sticks are available in orange and yellow colors and are available in single type or sectional type.

Single Type:

Code:

2152001

Tube Diameter (mm):32

Oval Length(M）:1.45

Weight Approx（kg):2.6

2152002:

Tube Diameter (mm):32

Oval Length(M）:2.03

Weight Approx（kg):2.9

2152003:

Tube Diameter (mm):32

Oval Length(M）:2.62

Weight Approx（kg):3.3

2152004:

Tube Diameter (mm):32

Oval Length(M）:3.23

Weight Approx（kg):3.6

2152005:

Tube Diameter (mm):32

Oval Length(M）:3.84

Weight Approx（kg):3.9

1.Color: Orange or Yellow

2.End head type: Cap or universal Head

Folded type

2153001:

Tube Diameter (mm):32

Oval Length(M）:2.06

Weight Approx（kg):3.6

2153002

Tube Diameter (mm):32

Oval Length(M）:2.64

Weight Approx（kg):4.1

2153003

Tube Diameter (mm):32

Oval Length(M）:3.25

Weight Approx（kg):4.5

2153004

Tube Diameter (mm):32

Oval Length(M）:3.86

Weight Approx（kg):4.7

2153005

Tube Diameter (mm):32

Oval Length(M）:4.47

Weight Approx（kg):5.0

2153006

Tube Diameter (mm):32

Oval Length(M）:5.08

Weight Approx（kg):5.2

1.Color: Orange or Yellow

2.End head type: Cap or universal Head
