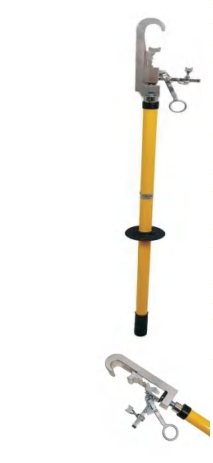

The wire pre-connecting insulating mounting rod is mainly used to fasten the lead line on the main lead line when the lead line is connected in live operation, which reduces the operation risk caused by the sloshing of the lead line and the lead line when the lead line is fixed in the clamp, easy and fast operation, high security.

Product Features ：

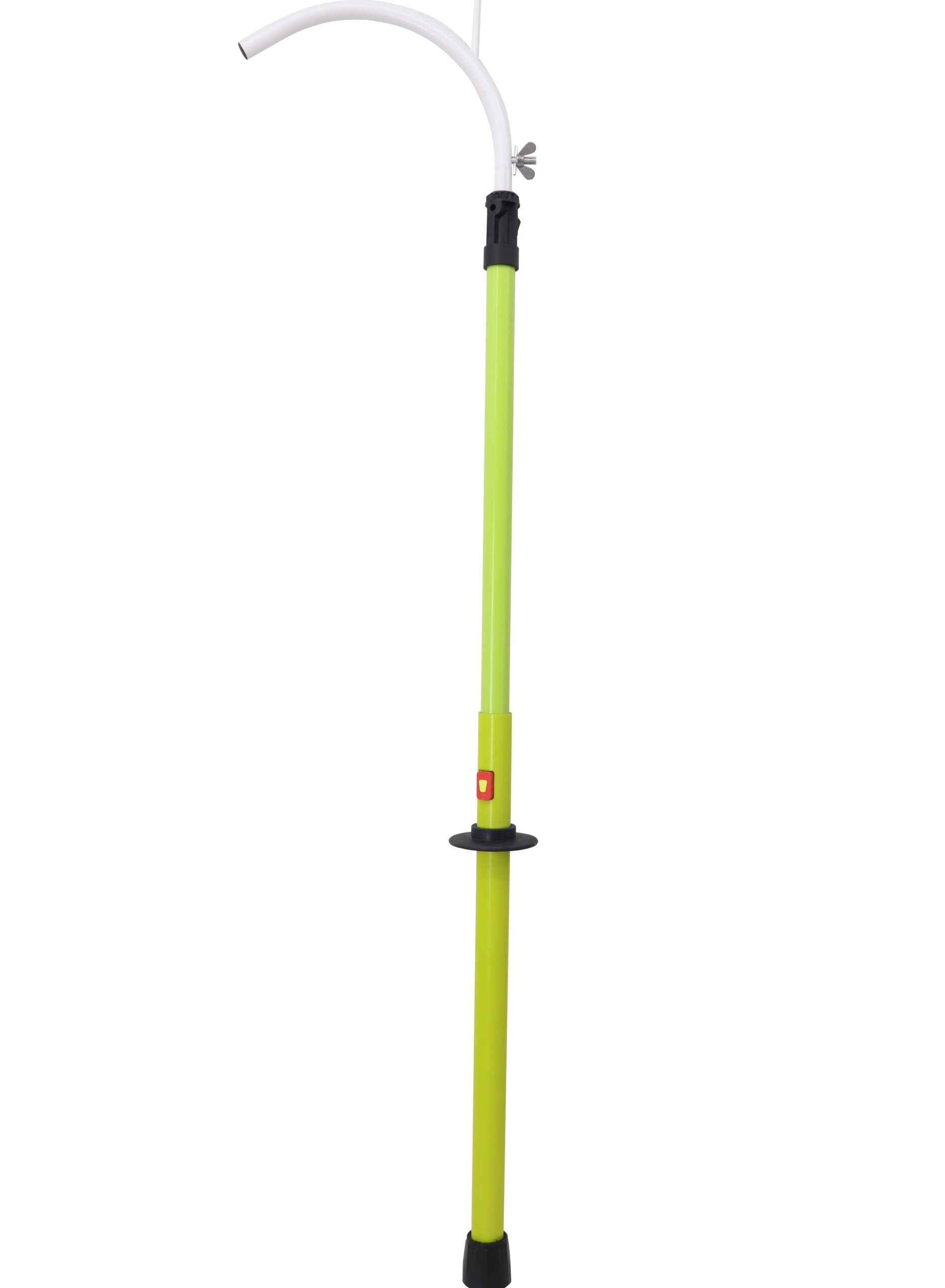

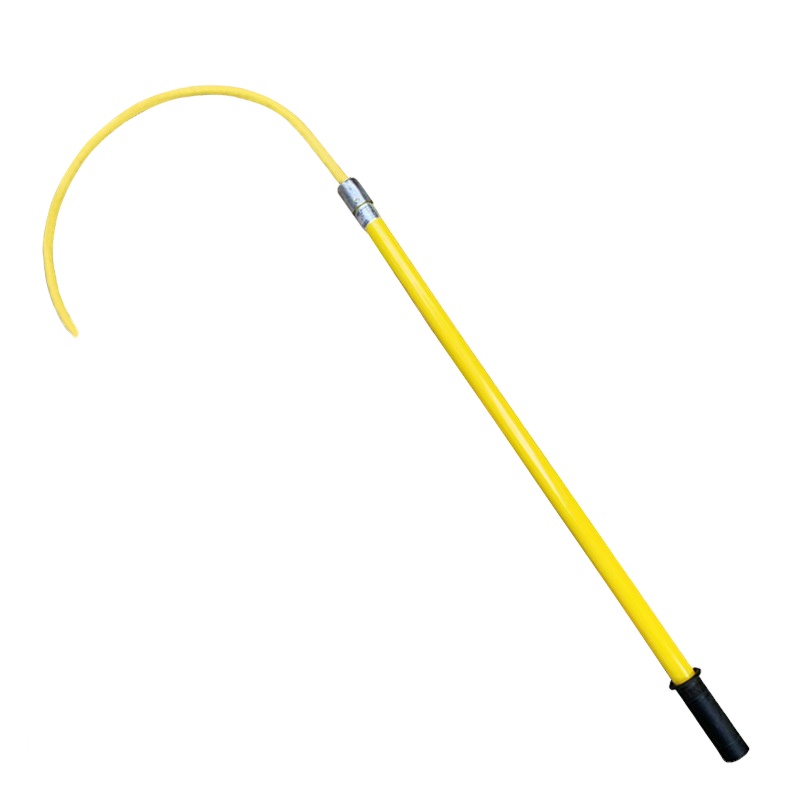

Insulating Stick for rescuing work in various live workplaces. It is used to grasp the injured person by the waist and bring them back to a protected area. It can also be used to push a cable away from a victim. Indoor and outdoor use.

Product Features ：

Insulating Stick for rescuing work in various live workplaces. It is used to grasp the injured person by the waist and bring them back to a protected area. It can also be used to push a cable away from a victim. Indoor and outdoor use.

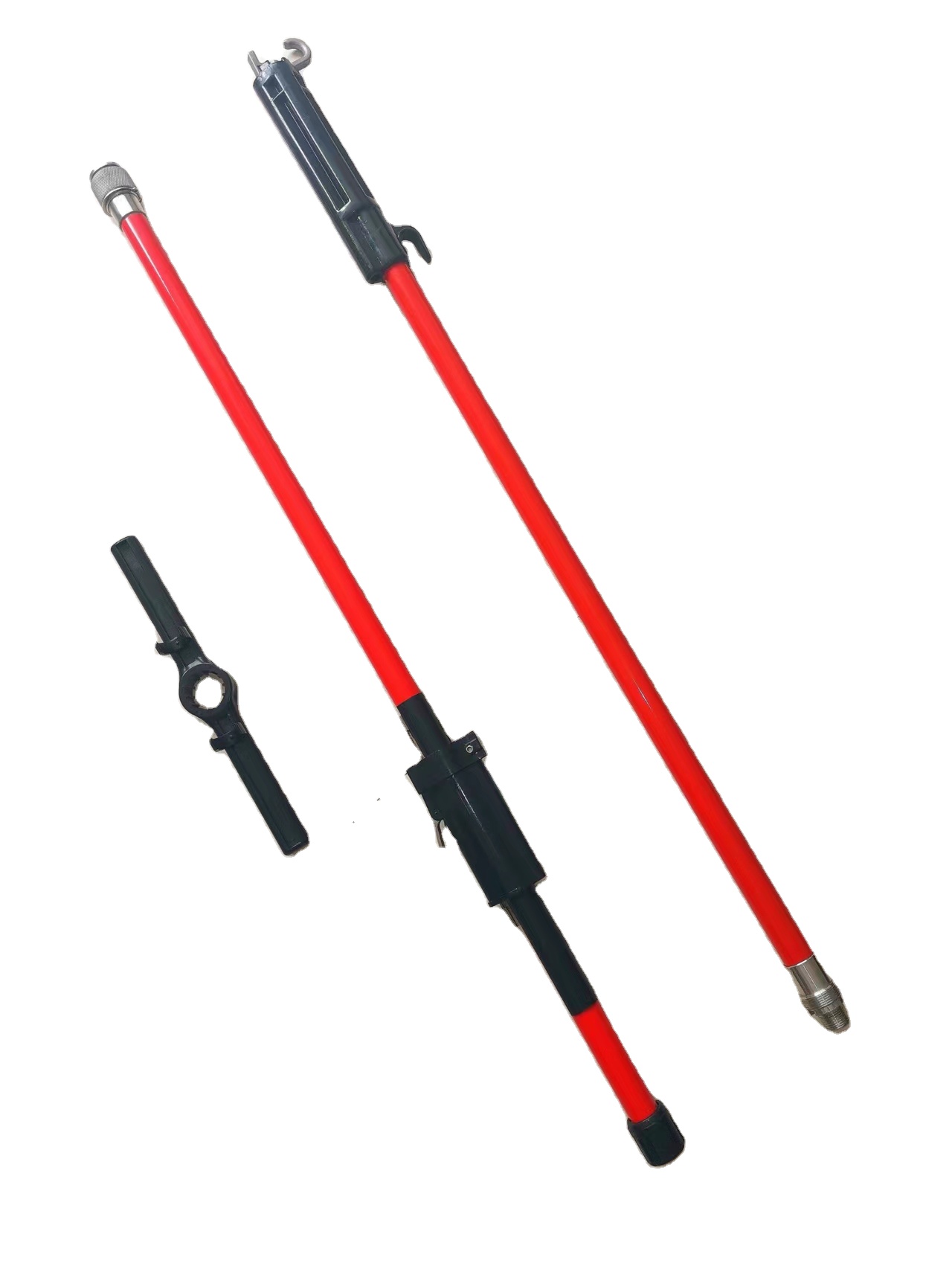

The shotgun stick is mainly used for live installation of wire clamps and grounding wire clamps, and is also suitable for installation of overhead and underground circuits and various terminal fittings. The shotgun stick is mainly characterized by good work applicability and convenient operation.

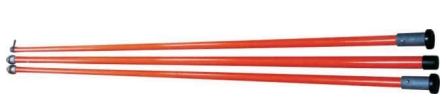

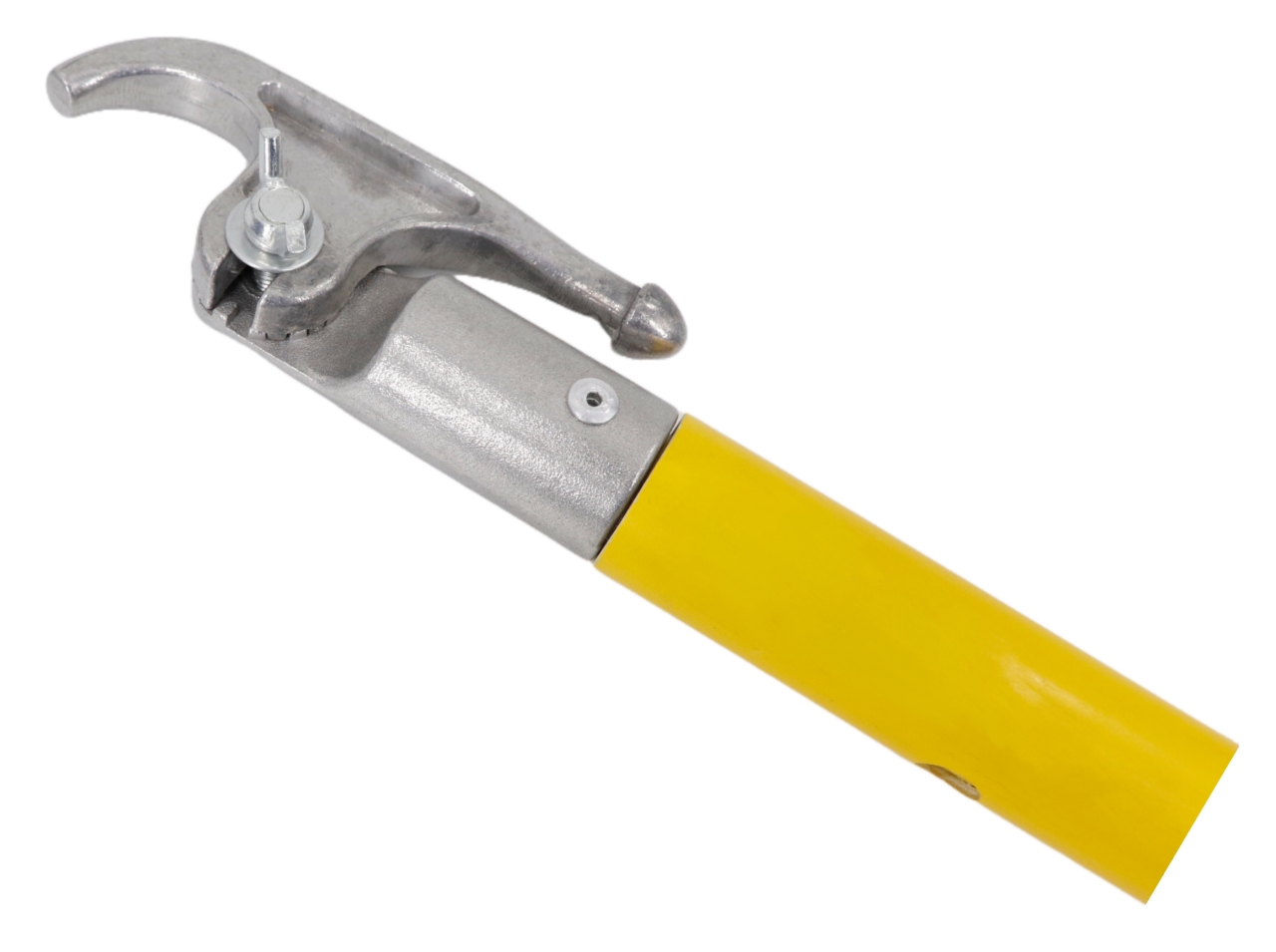

Switch Sticks also named disconnect sticks, used for opening and closing disconnect switches or cutouts and also used for installing and removing open-link fuse links.

Switch stick are made of foam filled epoxy fiberglass tube and cast bronze in 3 types :standard Prong head ,Heavy duty prong head or insulation prong head. It is also can be made by customer ordered head.

Material:

Universal head and Hook : aluminum alloy

Main body: foam filled fiberglass tube

Protection limitation: insulation rubber ring

Handle : insulation rubber

Bag: waterproof nylon bag

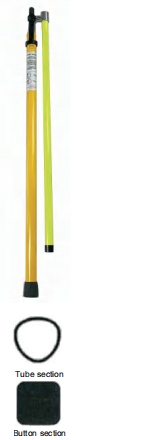

Metric scale on a triangular telescopic insulation cargo height measuring rod. It can measure the height of truck goods from the ground, and also can measure the height of overhead power lines and communication lines from the ground, it can also be used to trim branches, clean wires, replace fuses, and replace light bulbs.

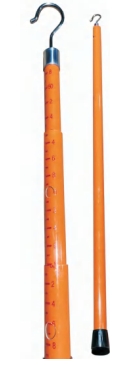

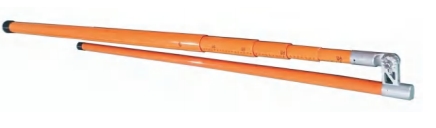

Round telescopic insulation cargo height measuring rod is metric scale, the main insulation rod is made of high strength epoxy glass tube, the product has excellent electrical and mechanical properties, the height of the rod light weight, easy to operate, can be measured from the ground height of goods, but also the height of overhead power lines, communication lines, etc

Metric scale is used on a triangular telescopic insulating height measuring rod, which can measure the height of overhead power lines and communication lines from the ground, it can also be used to trim branches, clean wires, replace fuses, replace light bulbs.

Round telescopic insulating height measuring rod is calibrated to metric scale. The main insulating rod is made of high strength epoxy glass fiber tube. The product has excellent electrical and mechanical properties.

The height measuring rod is light in weight and easy to operate, it can measure the height of overhead power line and communication line from the ground. The calibration of the product surface is clear and accurate, and the measuring error is not less than 5cm.

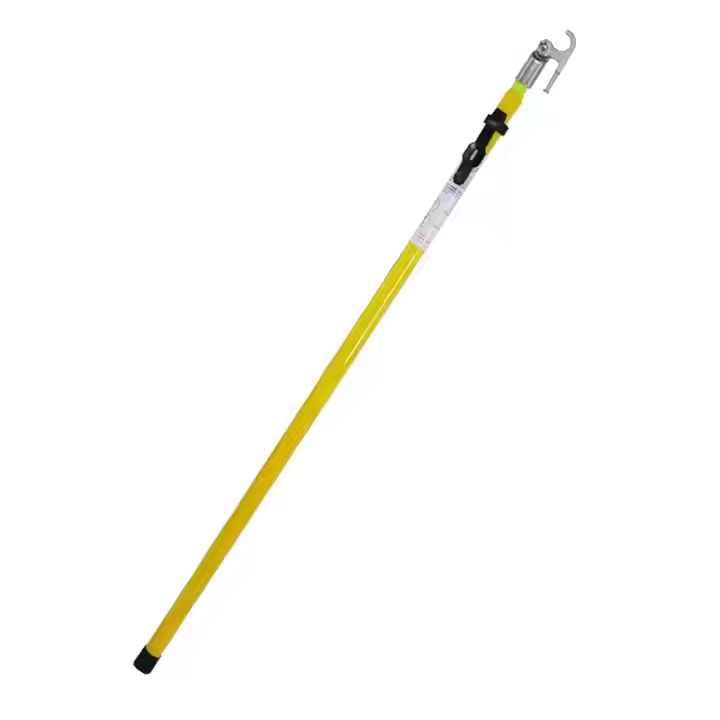

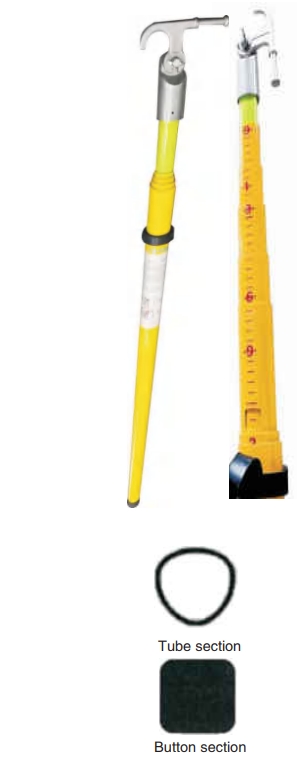

The triangle tube of the telescoping hot stick have maximum convenience for the lineman because they permit them to perform many routine jobs from ground level. The universal end fitting on the insulated top section accepts a wide variety of attachments, so the lineman can disconnect switches, replace cutout tubes and reclose, remove pole covers, prune trees, replace bulbs and complete many other overhead tasks.

The triangular tube section is shown as below pictures, approximate triangular arc is the most comfortable shape of hand grip. approximately triangular shape can avoid axial sliding during torsional operation. Compared with the traditional round tube, it is more stable, easy to connect to the operating part and easy operation.

The round teles coping hot s t i c k s have maximum convenience for the lineman because they permit them to perform many routine jobs from ground level. The universal end fitting on the insulated top section accepts a wide variety of attachments, so the lineman can disconnect switches, replace cutout tubes and reclose, remove pole covers, prune trees, replace bulbs and complete many other overhead tasks.

Fire detector IP-212-3SU (RP21) 2008. Differential pressure gauge DMEU-MI 400 / 5-0 2010, new from storage sale.www.dzmd.ru

Railroad crossing is a place of direct intersection of railway rails and a road or any other road. To ensure a single-level, safe and comfortable crossing of roads at a railway crossing, rubber floorings are used. Railway floorings have the following properties: they are excellent in repelling water, increase the coefficient of adhesion of the wheels of transport with a railway crossing, are resistant to freezing; they take shock loads well, dampen vibration (partially) ; fit tightly to the railway tracks, preventing the ingress of dirt on the rails. Rubber decks are designed for operation in various climatic conditions. Rubber coatings for level crossings are made with the expectation of long-term operation under severe loads and loads in the temperature range from -40 ° C to + 60 ° C. The permissible load from a car wheel is up to 4.5 tons. The service life of railway flooring is about 25 years. The railway flooring, consisting of monolithic rubber-cord-based plates, fixed to each other in a closed loop, is a rubber-cord flooring. The width of the rubber-cord flooring is a multiple of 545 mm. Level crossing slabs are suitable for the R-65 rail, the pitch of wooden or reinforced concrete sleepers is 545 mm. Slabs for rubber-cord decking are manufactured in accordance with TU 32TsP828-97. There is no ice crust on the plates, the rubber plate reduces shock loading, dampens vibrations. This rubber-cord flooring for railway crossings is an excellent combination of simple design, affordable price and long-term operation. Those. specifications Set of railroad decks with fastening KB 6.5 m wide (10 pieces included) Completeness of one decking: Internal plate OP 467.001 – 12 pcs. External plate OP 467.002 – 24 pcs. Internal insert 202.01-VN-SKI-01-04 – 24 pcs. External insert 202.01-VN-SKI-01-08 – 24 pcs. Fasteners – 1 set

The device is a single block of the reader-controller, installed directly next to the locked door from the street side. The device is anti-vandal and all-weather. Anti-vandal case and mount type ONEWAY; Works with all types of bank cards (contact and contactless); Support for work with NSPK "MIR" cards; Support for work with CHINA UnionPay cards Customizable filter on the passage of a certain set of cards; Filter for prohibition to the passage of expired cards; There is a possibility of mechanical unlocking of the door; Self-diagnosis of external elements of the system state; Detects skimming pads on the device reader with subsequent alarm notification; Android application for setting up the system via the Bluetooth interface; System autonomy, saves personal data of bank card holders; Warranty 12 months and service support; Those. specifications The hybrid reader of the device provides access by bank cards: with a magnetic stripe; with a chip; contactless interface (PayWave, PayPass) – OPTIONAL The front panel is equipped with a skimming pad detection sensor – OPTIONAL Maximum number of external connected circuits (elements): power line; 1. The magnetic head of the reader and the contact group for reading chip cards are as far as possible inside the device to prevent from the influence of the external environment (precipitation, dust) 2. Proximity card reader 3. Foreign object sensors (anti-skimming) 4. Anti-vandal protective pad 5. A protective shutter protects the reader mechanism from getting tokens, coins, small flat objects 6. The service hole allows for emergency removal of the plastic card 7. LED indicator 8. Sound emitter 9. DIP switch for operating modes 10. Terminal connector for connecting system peripherals

The device is a single block of the reader-controller, installed directly next to the locked door from the street side. The device is anti-vandal and all-weather. Anti-vandal case and mount type ONEWAY; Works with all types of bank cards (contact and contactless); Support for work with NSPK "MIR" cards; Support for work with CHINA UnionPay cards Customizable filter on the passage of a certain set of cards; Filter for prohibition to the passage of expired cards; There is a possibility of mechanical unlocking of the door; Self-diagnosis of external elements of the system state; Detects skimming pads on the device reader with subsequent alarm notification; Android application for setting up the system via the Bluetooth interface; System autonomy, saves personal data of bank card holders; Warranty 12 months and service support; Those. specifications The hybrid reader of the device provides access by bank cards: with a magnetic stripe; with a chip; The minimum number of external connected circuits (elements): power line; external blocking line; lock; exit button; Programmable during production 1. The magnetic head of the reader and the contact group for reading chip cards are as far as possible inside the device to prevent from the influence of the external environment (precipitation, dust) 2. Proximity card reader 3. Foreign object sensors (anti-skimming) 4. Anti-vandal protective pad 5. A protective shutter protects the reader mechanism from getting tokens, coins, small flat objects 6. The service hole allows for emergency removal of the plastic card 7. LED indicator 8. Sound emitter 9. DIP switch for operating modes 10. Terminal connector for connecting system peripherals

The device is a single block of the reader-controller, installed directly next to the locked door from the street side. The device is anti-vandal and all-weather. Anti-vandal case and mount type ONEWAY; Works with all types of bank cards (contact and contactless); Support for work with NSPK "MIR" cards; Support for work with CHINA UnionPay cards Customizable filter on the passage of a certain set of cards; Filter for prohibition to the passage of expired cards; There is a possibility of mechanical unlocking of the door; Self-diagnosis of external elements of the system state; Detects skimming pads on the device reader with subsequent alarm notification; Android application for setting up the system via the Bluetooth interface; System autonomy, saves personal data of bank card holders; Warranty 12 months and service support; Those. specifications The hybrid reader of the device provides access by bank cards: with a magnetic stripe; with a chip; contactless interface (PayWave, PayPass) – OPTIONAL The front panel is equipped with a skimming pad detection sensor – OPTIONAL Maximum number of external connected circuits (elements): power line; 1. The magnetic head of the reader and the contact group for reading chip cards are as far as possible inside the device to prevent from the influence of the external environment (precipitation, dust) 2. Proximity card reader 3. Foreign object sensors (anti-skimming) 4. Anti-vandal protective pad 5. A protective shutter protects the reader mechanism from getting tokens, coins, small flat objects 6. The service hole allows for emergency removal of the plastic card 7. LED indicator 8. Sound emitter 9. DIP switch for operating modes 10. Terminal connector for connecting system peripherals

The device is a single block of the reader-controller, installed directly next to the locked door from the street side. The device is anti-vandal and all-weather. Anti-vandal case and mount type ONEWAY; Works with all types of bank cards (contact and contactless); Support for work with NSPK "MIR" cards; Support for work with CHINA UnionPay cards Customizable filter on the passage of a certain set of cards; Filter for prohibition to the passage of expired cards; There is a possibility of mechanical unlocking of the door; Self-diagnosis of external elements of the system state; Detects skimming pads on the device reader with subsequent alarm notification; Android application for setting up the system via the Bluetooth interface; System autonomy, saves personal data of bank card holders; Warranty 12 months and service support; Those. specifications The hybrid reader of the device provides access by bank cards: with a magnetic stripe; with a chip; Increased number of external connected circuits (elements): power line; external blocking line; customer presence sensor line in the ATM area; lock; exit button; 1. The magnetic head of the reader and the contact group for reading chip cards are as far as possible inside the device to prevent from the influence of the external environment (precipitation, dust) 2. Proximity card reader 3. Foreign object sensors (anti-skimming) 4. Anti-vandal protective pad 5. A protective shutter protects the reader mechanism from getting tokens, coins, small flat objects 6. The service hole allows for emergency removal of the plastic card 7. LED indicator 8. Sound emitter 9. DIP switch for operating modes 10. Terminal connector for connecting system peripherals

The device is a single block of the reader-controller, installed directly next to the locked door from the street side. The device is anti-vandal and all-weather. Anti-vandal case and mount type ONEWAY; Works with all types of bank cards (contact and contactless); Support for work with NSPK "MIR" cards; Support for work with CHINA UnionPay cards Customizable filter on the passage of a certain set of cards; Filter for prohibition to the passage of expired cards; There is a possibility of mechanical unlocking of the door; Self-diagnosis of external elements of the system state; Detects skimming pads on the device reader with subsequent alarm notification; Android application for setting up the system via the Bluetooth interface; System autonomy, saves personal data of bank card holders; Warranty 12 months and service support; Those. specifications The hybrid reader of the device provides access by bank cards: with a magnetic stripe; with a chip; The minimum number of external connected circuits (elements): power line; external blocking line; lock; exit button; Programmable during production 1. The magnetic head of the reader and the contact group for reading chip cards are as far as possible inside the device to prevent from the influence of the external environment (precipitation, dust) 2. Proximity card reader 3. Foreign object sensors (anti-skimming) 4. Anti-vandal protective pad 5. A protective shutter protects the reader mechanism from getting tokens, coins, small flat objects 6. The service hole allows for emergency removal of the plastic card 7. LED indicator 8. Sound emitter 9. DIP switch for operating modes 10. Terminal connector for connecting system peripherals

The installation and use of gas analyzers is necessary in accordance with the fire safety rules for the operation of chemical industry enterprises, the general explosion safety rules for explosive and fire hazardous chemical, petrochemical and oil refineries, and the requirements for the installation of alarms and gas analyzers. The stationary gas analyzer Sigma-1M is specially designed and used where constant monitoring is required. content of vapors of explosive compounds in air or nitrogen atmosphere. Gas analyzer Sigma-1M with convection supply of a controlled environment is designed for automatic measurement and control of pre-explosive concentrations of explosive gases and vapors with the formation of emergency light, sound and control signals when the concentration of the controlled gas exceeds a specified level. , B-Ia and B-Id according to the explosion protection marking ("[Exib] IIB" for the panel and "1ExibdIIBT4 X" for the sensors) and in accordance with the Operation Manual. The device is used in industrial plants where gas leakage or evaporation of flammable liquids is possible. These are gas stations, pumping stations, oil depots, gas and oil producing enterprises, as well as in small premises where there is a danger of gas leaks: utilities, warehouses of flammable liquids.

The installation and use of gas analyzers is necessary in accordance with the fire safety rules for the operation of chemical industry enterprises, the general explosion safety rules for explosive and fire hazardous chemical, petrochemical and oil refineries, and the requirements for the installation of alarms and gas analyzers. The stationary gas analyzer Sigma-1M is specially designed and used where constant monitoring is required. content of vapors of explosive compounds in air or nitrogen atmosphere. Gas analyzer Sigma-1M with convection supply of a controlled environment is designed for automatic measurement and control of pre-explosive concentrations of explosive gases and vapors with the formation of emergency light, sound and control signals when the concentration of the controlled gas exceeds a specified level. , B-Ia and B-Id according to the explosion protection marking ("[Exib] IIB" for the panel and "1ExibdIIBT4 X" for the sensors) and in accordance with the Operation Manual. The device is used in industrial plants where gas leakage or evaporation of flammable liquids is possible. These are gas stations, pumping stations, oil depots, gas and oil producing enterprises, as well as in small premises where there is a danger of gas leaks: utilities, warehouses of flammable liquids.

Controlled gases and vapors: methane, propane, butane, pentane, hexane, propylene, cyclopentane, vapors of gasoline, kerosene, diesel fuel, white spirit, jet fuel, aviation gasoline, aviation fuel. Gas stations, pumping stations, oil depots, gas and oil producing enterprises, as well as in small premises where there is a danger of gas leaks: utilities, warehouses of flammable liquids.

Controlled gases and vapors: methane, propane, butane, pentane, hexane, propylene, cyclopentane, vapors of gasoline, kerosene, diesel fuel, white spirit, jet fuel, aviation gasoline, aviation fuel. Gas stations, pumping stations, oil depots, gas and oil producing enterprises, as well as in small premises where there is a danger of gas leaks: utilities, warehouses of flammable liquids.

The installation and use of gas analyzers is necessary in accordance with the fire safety rules for the operation of chemical industry enterprises, the general explosion safety rules for explosive and fire hazardous chemical, petrochemical and oil refineries, and the requirements for the installation of alarms and gas analyzers. The stationary gas analyzer Sigma-1M is specially designed and used where constant monitoring is required. content of vapors of explosive compounds in air or nitrogen atmosphere. Gas analyzer Sigma-1M with convection supply of a controlled environment is designed for automatic measurement and control of pre-explosive concentrations of explosive gases and vapors with the formation of emergency light, sound and control signals when the concentration of the controlled gas exceeds a specified level. , B-Ia and B-Id according to the explosion protection marking ("[Exib] IIB" for the panel and "1ExibdIIBT4 X" for the sensors) and in accordance with the Operation Manual. The device is used in industrial plants where gas leakage or evaporation of flammable liquids is possible. These are gas stations, pumping stations, oil depots, gas and oil producing enterprises, as well as in small premises where there is a danger of gas leaks: utilities, warehouses of flammable liquids.

Indoor antenna "Sirius 2.0" is designed to receive television programs in the range of 21-69 channels in analog and digital (DVB-T and DVB-T2) broadcast formats. The antenna is based on the classic log-periodic structure for UHF channels and provides a high-quality image in the area of stable television reception. The Sirius 2.0 housing is made of modern high-tech materials with high strength and operational safety. The antenna has a modern, elegant look, while its development took into account the realities of today – for example, the height of the main plane was chosen so that when installed on a window sill, it would not be shielded by the metal reinforcement profile of plastic windows. The antenna is optimized for receiving digital broadcasting in DVB-T and DVB-T2 formats in the UHF range, but in regions where there is no such broadcasting yet, viewers will be able to watch all analog broadcasting channels available on the air. "Sirius 2.0" is supplied in modern bright full-color packaging made of micro-corrugated cardboard. You will easily notice it in the shop window and will gladly present it to your relatives, friends and acquaintances. Those. specifications Antenna type: TV antenna of UHF range Antenna placement: Indoor Gain, max., dBi, 21-69 channel: 5 Impedance: 75 Amplifier: no Power supply: no Cable length: 2 Dimensions assembled (without attachment point), mm: 270х350х120 Weight, no more: 0.39 Dimensions in packing: 250x235x80 Weight in packing, kg: 0.56

Indoor antenna "Sirius 2.0" is designed to receive television programs in the range of 21-69 channels in analog and digital (DVB-T and DVB-T2) broadcast formats. The antenna is based on the classic log-periodic structure for UHF channels and provides a high-quality image in the area of stable television reception. The Sirius 2.0 housing is made of modern high-tech materials with high strength and operational safety. The antenna has a modern, elegant look, while its development took into account the realities of today – for example, the height of the main plane was chosen so that when installed on a window sill, it would not be shielded by the metal reinforcement profile of plastic windows. The antenna is optimized for receiving digital broadcasting in DVB-T and DVB-T2 formats in the UHF range, but in regions where there is no such broadcasting yet, viewers will be able to watch all analog broadcasting channels available on the air. "Sirius 2.0" is supplied in modern bright full-color packaging made of micro-corrugated cardboard. You will easily notice it in the shop window and will gladly present it to your relatives, friends and acquaintances. Those. specifications Antenna type: TV antenna of UHF range Antenna placement: Indoor Gain, max., dBi, 21-69 channel: 5 Impedance: 75 Amplifier: no Power supply: no Cable length: 2 Dimensions assembled (without attachment point), mm: 270х350х120 Weight, no more: 0.39 Dimensions in packing: 250x235x80 Weight in packing, kg: 0.56

The indoor window television antenna active "Viva" is designed to receive television broadcasts in the MW and UHF bands in the analog and digital broadcasting standard. Has a built-in low-noise amplifier with adjustable gain, which allows you to significantly improve reception in urban and near suburbs. Indoor antenna with outdoor capabilities! The effect is achieved by attaching to the window glass. Those. Specifications Antenna Placement: Indoor Antenna Type: All Wave TV Antenna Gain, Max, dBi, Channel 1-5: 42 Gain, Max, dBi, Channel 6-12: 42 Gain, Max, dBi, Channel 21-69: 42 Supply Voltage , V: 12 Wave impedance, Ohm: 75 Cable length, m: 1.8 Amplifier: yes Power supply unit: yes Weight, no more, kg: 0.36 Dimensions in packing, mm: 345х170х50

"REMO BAS-5302" is an active small-sized indoor antenna designed to work with television programs in the MW and UHF bands. Provides optimal reception of signals of analog MV / UHF and digital television formats DVB-T / DVB-T2. The antenna is equipped with a built-in amplifier and has the ability to adjust the gain of the TV signal. The antenna is supplied in a bright full-color box. Those. Specifications Antenna Placement: Indoor Antenna Type: All Wave TV Antenna Gain, Max, dBi, Channel 1-5: 31 Gain, Max, dBi, Channel 6-12: 31.5 Gain, Max, dBi, Channel 21-69: 33.5 Amplifier type: USSH-2A-DX Supply voltage, V: 12 Wave impedance, Ohm: 75 Cable length, m: 1.2 Amplifier: yes Power supply unit: yes Weight, not more, kg: 0.35 Dimensions in packing, mm: 285x250x120 Weight in packing, kg: 0.5

The active television small-sized indoor antenna "Zarya Digital" is designed to receive television programs in the MW and UHF bands. The antenna receives signals of analogue television and digital television of the DVB-T / DVB-T2 formats. The Zarya Digital antenna works in the zone of reliable reception. The range and quality of reception depends on the location of the antenna, the power of the transmitter, the distance to it, the terrain and a number of other factors. The antenna has the ability to adjust the gain of the TV signal. The antenna is supplied in a full color box. Those. Specifications Antenna Placement: Indoor Antenna Type: All Wave TV Antenna Gain, Max, dBi, Channel 1-5: 31 Gain, Max, dBi, Channel 6-12: 31.5 Gain, Max, dBi, Channel 21-69: 33.5 Amplifier type: USSH-2A-DX Supply voltage, V: 12 Wave impedance, Ohm: 75 Cable length, m: 1.8 Amplifier: yes Power supply unit: yes Weight, no more than, kg: 0.55 Dimensions in packing, mm: 280x150x120

Antenna "REMO BAS-5106 RADAR" is designed to receive television programs in the frequency band 174 … 862 MHz (channels from 6 to 69 MV and UHF). The antenna receives signals of analog and digital television in the DVB-T / DVB-T2 format. The antenna has a built-in amplifier, which can be powered either through a coaxial cable directly from a DVB-T2 digital receiver (receiver) or a TV with a DVB-T2 tuner (if such The antenna is supplied in a full color micro corrugated box. The antennas can be produced in blister packs. Those. specifications Antenna placement: Indoor Antenna type: Broadband TV antenna Gain, max., dBi, 6-12 channel: 15 Gain, max., dBi, 21-69 channel: 26 Supply voltage, V: 5 Impedance, Ohm: 75 Cable length, m: 1.2 Amplifier: yes Power supply unit: no Weight, no more, kg: 0.35 Dimensions in packing, mm: 265x240x35

Indoor broadband antenna REMO BAS-5340-5V "TVJET ANT" for connection to digital TV broadcasting receivers DVB-T and DVB-T2. The new integrated amplifier achieves high signal reception performance. And the classical log-periodic structure, on which this antenna is based, provides a high-quality image in the area of stable television reception. REMO BAS-5340-5V "TVJET ANT" case is made of modern high-tech materials with high strength and operational safety. The antenna has a modern appearance, while developing it, the realities of today were taken into account – for example, the height of the main plane was chosen so that when installed on a window sill, it would not be shielded by the metal reinforcement profile of plastic windows. The antenna is made in a classic black color and looks great when paired with black technology. Supplied in a full color micro corrugated box. Those. specifications Antenna type: Broadband TV antenna Antenna placement: Indoor Gain, max., dBi, 6-12 channel: 23 Gain, max., dBi, 21-69 channel: 43 Impedance: 75 Amplifier: yes Power supply: no Power supply, V: 5 Cable length : 1.8 Dimensions in assembly (without attachment point), mm: 270х350х120 Weight, no more: 0.36 Dimensions in packing: 250х235х80 Weight in packing, kg: 0.55

Indoor antenna "Phobos 2.1" is designed to receive television programs in the range of 21-69 channels in analog and digital (DVB-T and DVB-T2) broadcast formats. The antenna is based on the classic log-periodic structure for UHF channels, equipped with a modern low-noise amplifier and provides high-quality images in the area of stable television reception. The Phobos 2.1 housing is made of modern high-tech materials with high durability and operational safety. The antenna has a modern, elegant look, while its development took into account the realities of today – for example, the height of the main plane was chosen so that when installed on a window sill, it would not be shielded by the metal reinforcement profile of plastic windows. The antenna is optimized for receiving digital broadcasting in DVB-T and DVB-T2 formats in the UHF range, but in regions where such broadcasting is not yet available, viewers will be able to watch all analog broadcasting channels available on the air. two versions: powered by a built-in amplifier from a digital receiver or thanks to a USB injector "Phobos 2.1" is supplied in a modern bright full-color package made of micro-corrugated cardboard. You will easily notice it in the shop window and will gladly present it to your relatives, friends and acquaintances. Those. specifications Antenna type: TV antenna of UHF range Antenna placement: Indoor Gain, max., dBi, 21-69 channel: 42 Impedance: 75 Amplifier: Yes Power supply: Yes Supply voltage, V: 12 Cable length: 1.8 Dimensions assembled (without attachment point), mm : 270х350х120 Weight, no more: 0.67 Dimensions in packing: 250х235х80

The active indoor all-wave antenna "REMO BAS-5315" specializes in receiving analog and digital (DVB-T and DVB-T2) broadcasting format of television programs in a wide frequency range. Equipped with a built-in amplifier, thanks to which it confidently receives the signal in the room. It is powered by a complete power supply unit. White polymer plastic gives "REMO BAS-5315" a modern look. In addition, the high-tech materials of the case are highly durable and safe to use. The antenna is supplied in a micro-corrugated cardboard package. Those. specifications Antenna type: All-wave TV antenna Antenna placement: Indoor Gain, max., dBi, 6-12 channel: 25 Gain, max., dBi, 21-69 channel: 35 Impedance: 75 Amplifier: Yes Power supply: Yes Supply voltage, V: 12 Cable length : 1.8 Weight, no more: 0.9 Dimensions in packing: 285x235x235

All-wave terrestrial indoor antenna "Inter 2.0" is designed to receive television programs in the ranges of 1-12 and 21-69 channels in analog and digital (DVB-T and DVB-T2) broadcast formats. The antenna is based on the classic log-periodic structure for UHF channels and has a flexible dipole element for MV channels. The amplifier of the new design is practically not susceptible to the negative influence of interference from switching power supplies of modern household and computer equipment. The "Inter 2.0" case is made of modern high-tech materials with high durability and operational safety. The antenna has a modern, elegant look, while its development took into account the realities of today – for example, the height of the main plane was chosen so that when installed on a window sill, it would not be shielded by the metal reinforcement profile of plastic windows. The antenna is optimized for receiving digital broadcasting in DVB-T and DVB-T2 formats in the UHF range, but in regions where there is no such broadcasting yet, viewers will be able to watch all MV and UHF channels thanks to a flexible dipole element. "Inter 2.0" is delivered in a modern bright full-color packaging made of micro-corrugated cardboard. You will easily notice it in the shop window and will gladly present it to your relatives, friends and acquaintances. Those. specifications Antenna type: All-wave TV antenna Antenna placement: Indoor Gain, max., dBi, 6-12 channel: 34 Gain, max., dBi, 21-69 channel: 42 Impedance: 75 Amplifier: Yes Power supply: Yes Supply voltage, V: 12 Cable length : 1.8 Weight, no more: 0.67 Dimensions in packing: 255x235x80

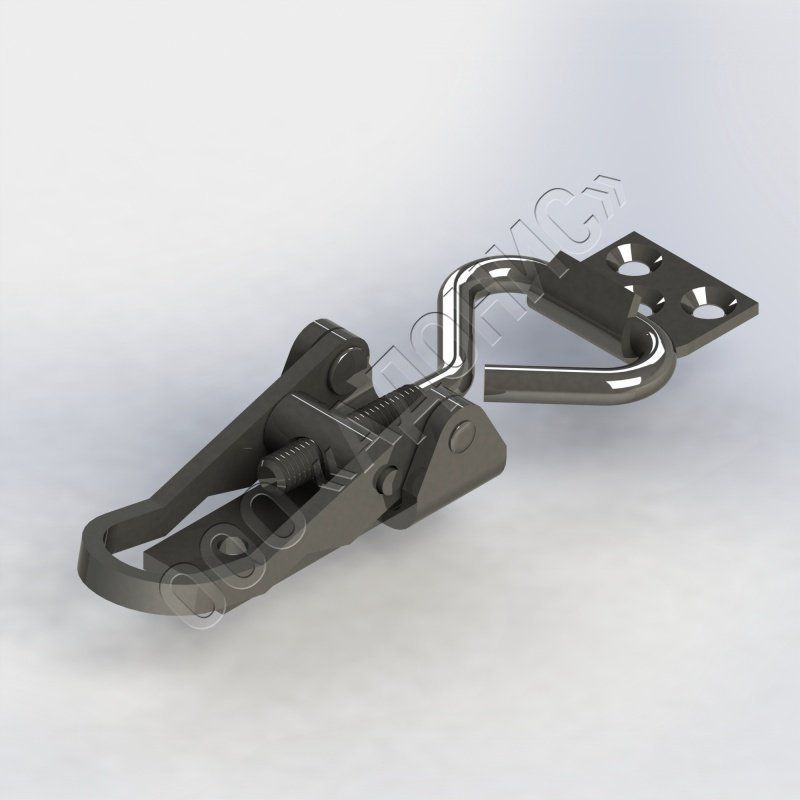

Material – steelCoating – zinc 6The design of the lock is adjustable by means of a screw-loop in length from 115 to 140 mm, which is convenient for fixing / tightening various elements. Those. Specification Drawing.

Material – stainless steel Mating part: straight / L-shaped The design of the lock is adjustable with a screw-loop in length from 80 to 100 mm, which is convenient for fixing / tightening various elements. Those. Specification Drawing.

Material – steel Coating – zinc 6 Mating part: straight / L-shaped The design of the lock is adjusted with a screw-loop in length from 92 to 108 mm, which is convenient for fixing / tightening various elements. Those. Specification Drawing.

Material – steel Coating – zinc 6 Mating part: straight / L-shaped The design of the lock is adjustable with a screw-loop in length from 190 to 220 mm, which is convenient for fixing / tightening various elements. Those. Specification Drawing.

Material – steel Coating – zinc 6 Mating part: straight / L-shaped The design of the lock is adjusted by means of a screw-loop in length from 115 to 135 mm, which is convenient for fixing / tightening various elements. Those. specifications See drawing.

Material – steelCoating – zinc 6OST 4G О.440.202-80 – Drawer armature The locking hook prevents spontaneous opening of the lock cover. Those. Specification Drawing.

Material – steelCoating – zinc 6OST 4G О.440.202-80 – Drawer armature The locking hook prevents spontaneous opening of the lock cover. Those. Specification Drawing.

Material – steelCoating – zinc 6OST 4G О.440.202-80 – Drawer armature The locking hook prevents spontaneous opening of the lock cover. Those. Specification Drawing.

Material – steelCoating – zinc 6OST 4G О.440.202-80 – Drawer armature The locking hook prevents spontaneous opening of the lock cover. Those. Specification Drawing.

Material – steelCoating – zinc 6OST 4G О.440.202-80 – Drawer armature The locking hook prevents spontaneous opening of the lock cover. Those. Specification Drawing.

Material – steelCoating – zinc 6OST 4G О.440.202-80 – Drawer armature The locking hook prevents spontaneous opening of the lock cover. Those. Specification Drawing.

tgtrny

hbdrtvqafvfvbfgb

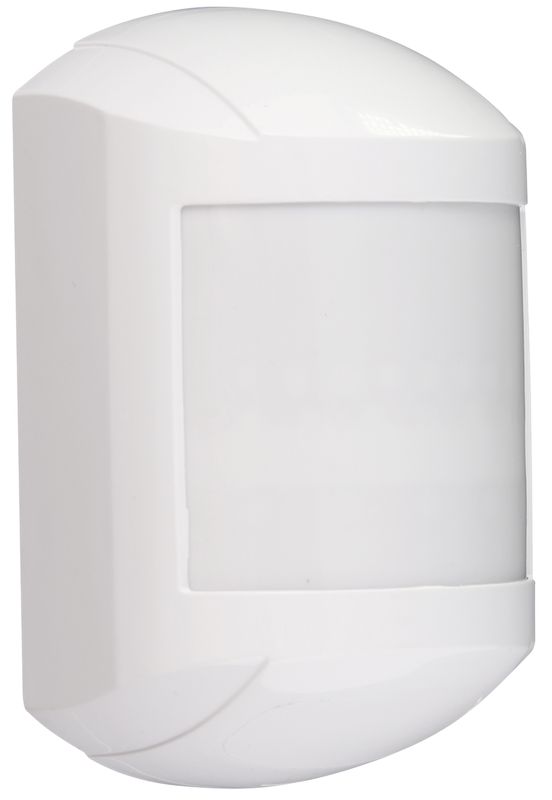

Basic data: – 2 channels of detection: volumetric optoelectronic (IR), radio wave (RF); – immunity to thermal interference; – effective detection of longitudinal displacements; – high detectivity and noise immunity; – microprocessor-based signal analysis; – discrete adjustment of the detecting ability ; – "alarm memory" mode; – two-color indication; – self-testing during operation; – complete with a universal swivel bracket. IR: – volumetric detection zone; – spherical lens; – temperature compensation; – test mode for passage. PB: – detection zone , combined with the detection zone of the IR channel; – shift of the radiation frequency, allowing the use of two detectors in the same room; – smooth adjustment of the range; – resistance to the radiation of fluorescent lamps. Those. specifications Technical data: – operating frequencies from 5350 to 5650 MHz – operating range 10 m – detection zone angle in the horizontal plane 90 ° – recommended installation height 2.2 ÷ 2.5 m – supply voltage 8 ÷ 15 V – current consumption, no more than 16 mA – channel resistance relay in standby mode 6 ÷ 8 Ohm – overall dimensions 107х72х52 mm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at 35 ° С – degree of protection by shell IP41 Informative value: "detector output to operating mode"; " norm ";" alarm ";" alarm in the "alarm memory" mode; "alarm in the test mode"; "malfunction"; "interference".

Basic data: – 2 channels of detection: volumetric optoelectronic (IR), radio wave (RF); – immunity to thermal interference; – effective detection of longitudinal displacements; – high detectivity and noise immunity; – microprocessor-based signal analysis; – discrete adjustment of the detecting ability ; – "alarm memory" mode; – two-color indication; – self-testing during operation; – complete with a universal swivel bracket. IR: – volumetric detection zone; – spherical lens; – temperature compensation; – test mode for passage. PB: – detection zone , combined with the detection zone of the IR channel; – shift of the radiation frequency, allowing the use of two detectors in the same room; – smooth adjustment of the range; – resistance to the radiation of fluorescent lamps. Those. specifications Technical data: – operating frequencies from 5350 to 5650 MHz – operating range 10 m – detection zone angle in the horizontal plane 90 ° – recommended installation height 2.2 ÷ 2.5 m – supply voltage 8 ÷ 15 V – current consumption, no more than 16 mA – channel resistance relay in standby mode 6 ÷ 8 Ohm – overall dimensions 107х72х52 mm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at 35 ° С – degree of protection by shell IP41 Informative value: "detector output to operating mode"; " norm ";" alarm ";" alarm in the "alarm memory" mode; "alarm in the test mode"; "malfunction"; "interference".

Basic data: – detection of destruction of ordinary glasses protected by a polymer film, – reinforced, patterned, multilayer building, tempered flat; – miniature case; – microprocessor-based signal analysis; – discrete sensitivity adjustment; – additional protection with a metal shield against electromagnetic interference; – mode "alarm memory"; – case opening control; – supply voltage control; – optoelectronic relay; – installation on the wall, on the ceiling, between the frames of Tech. specifications Technical data: – operating range 6 m – supply voltage 8 ÷ 15 V – recommended installation height 2 m – resistance of the relay channel in standby mode, no more than 8 Ohm – current consumption, no more than 18 mA Operating conditions: – temperature from -20 to + 50 ° С – relative air humidity without condensation moisture up to 95% at + 35 ° С – degree of protection by enclosure IP30 Informative value: "normal"; "alarm"; "tampering"; "supply voltage is lower than permissible"; "increased level of interference at high frequency"; "increased level of interference by low frequency ".

Basic data: – 2 channels of detection: volumetric optical-electronic (IR), ultrasonic (US); – immunity to thermal interference; – effective detection of longitudinal displacements; – high detecting ability and noise immunity; – microprocessor-based signal analysis; – "alarm memory "; – two-color indication; – self-testing during operation; – complete set with a universal swivel bracket IR: – volumetric detection zone; – spherical lens; – discrete adjustment of detectivity; – temperature compensation; – test mode per pass. US: – discrete adjustment of detectivity ; – smooth adjustment of range; – quartz stabilization of the operating frequency, which allows the use of several detectors in one room. Those. specifications Technical data: – operating range 10 m – angle of the detection zone in the horizontal plane 90 ° – operating frequency of the ultrasonic channel 25 kHz – recommended installation height 2.2 m – supply voltage 8 ÷ 15 V – current consumption, no more than 25 mA – resistance of the relay channel in standby mode 6 ÷ 8 Ohm – overall dimensions 106.5х72х51.5 mm Operating conditions: – temperature from -10 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at 35 ° С – degree of protection by the shell IP41 Information content: "detector output to operating mode"; " norm ";" alarm ";" alarm in the "alarm memory" mode; "alarm in the test mode"; "malfunction"; "interference".

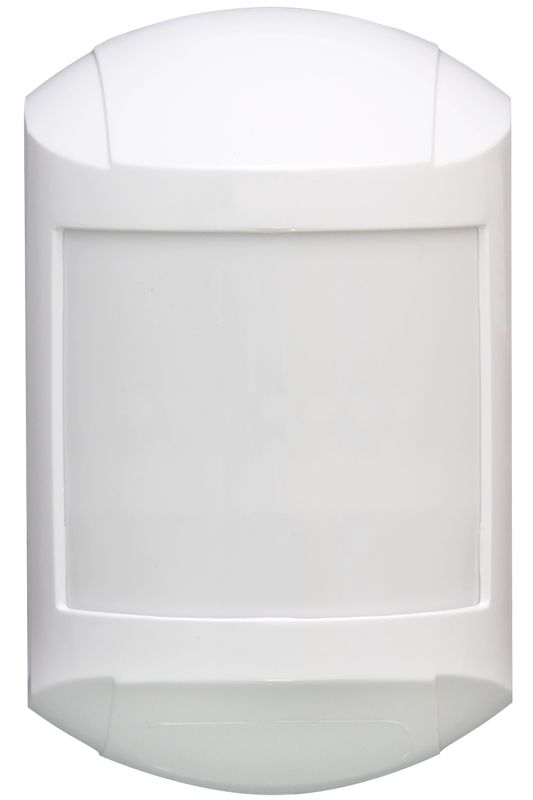

Basic data: – volumetric detection zone; – spherical lens; – anti-masking function; – detection of changes in spatial orientation; – detection of detachment from the mounting wall; – anti-tampering zone; – microprocessor-based signal analysis; – discrete adjustment of detectivity; – test mode for passage; – case opening control; – supply voltage control; – self-testing during operation; – optoelectronic relays; – complete with a universal swivel bracket. Those. specifications Technical data: – operating range 10 m – angle of the detection zone in the horizontal plane 90 ° – recommended installation height 2.3 ÷ 2.5 m – supply voltage 8 ÷ 15 V – current consumption, no more than 16 mA – resistance of the relay channel in standby mode 6 ÷ 16 Ohm – permissible current through the Relay contacts, no more than 0.08 A – permissible voltage at the Relay contacts, no more than 100 V – permissible current through the TMP circuit, no more than 0.05 A – permissible voltage through the TMP circuit, no more than 72 V – overall dimensions 106.5x72x51, 5 mm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С – degree of protection by shell IP41 Information content: "detector output to operating mode"; "normal"; "alarm"; "alarm when masking ";" alarm when changing position ";" alarm when detached from the mounting wall ";" alarm in test mode ";" malfunction ";" opening ".

Basic data: – volumetric detection zone; – spherical lens; – anti-tampering zone; – microprocessor-based signal analysis; – discrete adjustment of detectivity; – test mode for passage; – "alarm memory" mode; – self-testing during operation; – temperature compensation; – complete set with a universal swivel bracket. Those. specifications Technical data: – operating range 12 m – angle of the detection zone in the horizontal plane 90 ° – recommended installation height 2.2 ÷ 2.5 m – supply voltage 8 ÷ 15 V – consumption current, no more than 12 mA – resistance of the relay channel in standby mode 6 ÷ 8 Ohm – overall dimensions 106.5х72х51.5 mm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С – degree of protection by the shell IP41 "alarm"; "alarm in the" alarm memory "mode;" alarm in the test mode ";" malfunction ".

Basic data: volumetric detection zone (lens – "standard"); anti-tampering zone; microprocessor-based signal analysis; discrete adjustment of detectivity; presence of a test mode for passage; mode "alarm memory"; temperature compensation; wide range of operating temperatures; optoelectronic relay; stability to external illumination not less than 6500 lux; the possibility of installation using a bracket (swivel or ball). Those. specifications Technical data: detector range 12 m angle of the detection zone in the horizontal plane 90 ° recommended installation height 2.5 m supply voltage 8 ÷ 15 V Current consumption, no more than 12 mA resistance of the relay channel in standby mode 6 ÷ 8 Ohm Operating conditions: – temperature from -30 to + 50 ° С – relative air humidity without condensation moisture up to 95% at + 35 ° С – degree of protection by the shell IP41 Information content: "detector output to standby mode"; "normal"; "alarm"; "alarm in" alarm memory "mode;" alarm in test mode ";" opening ";" malfunction ".

Basic data: – volumetric detection zone (lens – "standard"); – selection of the detection zone by the position of the printed circuit board; – anti-tampering zone; – microprocessor analysis of the signal; – discrete adjustment of the detecting ability; – test mode for passage; – mode "alarm memory" ; – temperature compensation; – resistance to external illumination not less than 6500 lux; – optoelectronic relay; – wide range of operating temperatures; – complete with an angle bracket. Those. specifications Technical data: – detector operating range 10 m – detection zone angle in the horizontal plane 90 ° – recommended installation height 2.5 m – supply voltage 8 ÷ 15 V – consumption current, no more than 15 mA – resistance of the relay channel in standby mode, no more than 8 Ohm – temperature from -30 to + 50 ° С – relative humidity without moisture condensation up to 95% at + 35 ° С – degree of protection by shell IP41 Information content: "detector output to standby mode"; "normal"; "alarm"; "alarm in memory mode alarms ";" alarm in test mode ".

Basic data: – 2 channels of detection: volumetric optoelectronic (IR), surface sound (AC); – microprocessor-based signal analysis; – two optoelectronic relays; – additional protection with a metal shield against electromagnetic interference; – "alarm memory" mode; – mode testing of the AK-channel; – control of the supply voltage; IR: – discrete adjustment of the detecting ability; – anti-tampering zone; – resistance to external illumination of at least 6500 lx AC: – detection of destruction of ordinary glasses protected by a polymer film, – reinforced, patterned, multilayer building, hardened flat; – discrete sensitivity adjustment Tech. specifications Technical data: – IR channel range 12 m – AK channel range 6 m – IR channel detection area angle in the horizontal plane 90 ° – recommended installation height 2.4 ÷ 2.5 m – supply voltage 8 ÷ 15 V – current consumption, no more than 15 mA – resistance of the relay channel in standby mode, no more than 8 Ohm Operating conditions: – temperature from -20 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С – degree of protection by the shell IP30 Informative value: "exit to standby mode" ; "norm – IR"; "alarm – IR"; "norm – AK"; "alarm – AK"; "supply voltage below the permissible"; "increased level of interference at high frequency"; "increased level of interference at low frequency".

Basic data: volumetric detection zone (lens – "standard"); selection of the detection zone by the position of the printed circuit board (8 or 12 m); anti-tamper zone; microprocessor-based signal analysis; discrete adjustment of detecting ability; test mode for passage; mode "alarm memory"; temperature compensation ; case opening control; resistance to external illumination not less than 6500 lux; optoelectronic relay; wide range of operating temperatures; complete with ball bracket. Those. specifications Technical data: – detector range 12 m – detection zone angle in the horizontal plane 90 ° – recommended installation height 2.2 ÷ 2.4 m-supply voltage 8 ÷ 15 V-current consumption, no more than 12 mA-resistance of the relay channel in standby mode, not more than 8 Ohm – overall dimensions 70 × 51 × 41 mm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without moisture condensation up to 98% at + 25 ° С – degree of protection by enclosure IP41 Informative value: "detector output to standby mode"; ";" alarm ";" alarm in "alarm memory" mode; "alarm in test mode"; "opening".

Basic data: – no reaction to the movement of animals weighing up to 20 kg; – volumetric detection zone (lens – "standard"); – no anti-tampering zone; – microprocessor-based signal analysis; – four-site pyroelectric detector; – discrete adjustment of the detecting ability; – test mode per pass; – "alarm memory" mode; – case opening control; – temperature compensation; – resistance to external illumination at least 6500 lux; – optoelectronic relay; – complete with an angle bracket. Those. specifications Technical data: – operating range 10 m – minimum range of the detector 2 m – angle of the detection zone in the horizontal plane 90 ° – recommended installation height 2.4 ÷ 2.5 m – supply voltage 8 ÷ 15 V – current consumption, no more than 15 mA Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without condensation moisture up to 95% at + 35 ° С – degree of protection by shell IP41 Information content: "detector output to standby mode"; "normal"; "alarm"; "alarm in" alarm memory "mode ; "opening"; "test mode alarm".

1 Purpose 1.1 The detector is designed to detect intrusion into the protected space of an enclosed space and generate an alarm notification by opening the output contacts of the signal relay. 1.2 The detector is powered from any DC source with a nominal voltage of 12 V with a ripple amplitude of no more than 0.1 V. zones. Each sensitive area consists of two elementary sensitive areas. The sensitive zones of the detector are formed by a Fresnel lens and a two-area pyroelectric radiation detector. The electrical signal from the pyroelectric receiver is fed to the microcontroller, which, in accordance with the specified operation algorithm, generates the "Alarm" notification by opening the output circuit of the optoelectronic relay. Those. Specifications Technical data Detector operating range 10 m angle of the detection zone in the horizontal plane 90 ° Recommended installation height 2.3 ÷ 2.5 m Supply voltage 8 ÷ 15 V Current consumption, no more than 15 mA Relay channel resistance in standby mode, no more than 8 Ohm Operating conditions: – temperature from 0 to + 50 ° С – relative humidity of air without condensation moisture up to 95% at + 35 ° С – degree of protection by shell IP41 Informative value "exit to standby mode"; "norm"; "alarm".

– autonomous operation: receiving and decoding notifications from registered detectors of the Astra-RI-M system, issuing notifications to the built-in relay outputs and an open collector output, issuing to the two-wire RS-485 interface for connected expansion units (displays and relays); – wireless zone expander as part of a system with the central Control Panel Astra Pro series (Astra-712 Pro, Astra-812 Pro, Astra-8945 Pro); – signal repeater (RTR) as part of the Astra-RI-M system to increase the range of the system. Those. specifications Technical data: Operating frequencies: – letter 1433, 42 MHz – letter 3434, 42 MHz – Radio channel range in open areas, not less: – for detectors 300 m – for KTS1000 m – for RPDK1000 m – for RTR1500 m – for RPD Astra-RI2000 mm power MPP in transmission mode, no more than 10 mW Supply voltage 10 to 28 W Consumption current at 12 V, no more than 100 mA Consumption current at 24 V, no more than 80 mA Technical readiness time, no more than 60 s RS-485 interface line length, subject to the use of KSV cable -0.52 / KSPVG 0.2-0.5 / UTP-5 up to 1000 mg overall dimensions 136x86x38 mm Operating conditions: – temperature from -10 to + 55 ° С – relative humidity of air without moisture condensation up to 98% at + 40 ° С – degree of protection IP20 enclosure Informativeness 3 three-color indicators: POWER indicator – power state, VIOLATION indicator – expander's own state, including the state of devices registered in it, RADIO NETWORK indicator – transmission / reception of information for the sake of mains; "A 485 V" – input / output of the interface of wired communication RS-485; 4 universal programmable outputs: "Relay 1" – "Relay 3" – provide load switching no more than 0.1 A / 100 V, "OC" – "Open collector", provides switching of the load no more than 0.5 A / 27 V

Basic data: – volumetric detection zone, control of the entire volume of the room; – immunity to thermal interference; – effective detection of longitudinal displacements; – quartz stabilization of the operating frequency, allowing the use of several detectors in one room; – microprocessor-based signal analysis; – discrete adjustment of the detecting ability; – smooth adjustment of range; – "alarm memory" mode; – two-color indication; – self-testing during operation – complete with a universal swivel bracket. Those. specifications Technical data: – operating range 10 m – recommended installation height 2.2 m – supply voltage 8 ÷ 15 V – consumption current, no more than 25 mA – resistance of the relay channel in standby mode 6 ÷ 8 Ohm – overall dimensions 106.5х72х38 mm Operating conditions: – temperature from -10 up to + 50 ° С – relative humidity without moisture condensation up to 95% at + 35 ° С – degree of protection by the shell IP41 Information content: "exit to standby mode"; "normal"; "alarm"; "alarm in the" alarm memory "mode; ";" hindrance ".

Basic data: – solid volumetric detection zone; – immunity to thermal interference; – effective detection of longitudinal displacements; – resistance to the radiation of fluorescent lamps; – microprocessor-based signal analysis; – smooth adjustment of the detecting ability; – self-testing during operation; – complete set with a universal swivel bracket Tech. specifications Technical data: – detector operating range 10 m – detection zone angle in the horizontal plane 90 ° – operating frequencies from 5350 to 5650 MHz – recommended installation height, not less than 2.1-2.5 m – supply voltage 9 ÷ 15 V – current consumption, not more than 16 mA – resistance of the relay channel in standby mode, no more than 16 Ohm – overall dimensions 106x72x38 mm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° C Information content: "exit to standby mode" ; "normal"; "alarm"; "interference"; "malfunction" "opening".

Basic data: – installation on the ceiling, volumetric circular detection zone; – maximum installation height up to 3.6 m; – 110 elementary sensitive zones; – microprocessor-based signal analysis; – discrete adjustment of detecting ability; – temperature compensation; – wide operating temperature range; – resistance to external illumination not less than 6500 lx; – "alarm memory" mode; – case opening control; – optoelectronic relay. Those. specifications Technical data: – diameter of the detection zone 9 m – recommended installation height 2.4 ÷ 3.6 m – angle of the detection zone in the horizontal plane 360 ° – supply voltage 8 ÷ 15 V – consumption current, no more than 15 mA – resistance of the relay channel in standby mode, not more than 8 Ohm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С – degree of protection by shell IP41 in the "alarm memory" mode; "alarm in test mode"; "opening".

Basic data: – installation on the ceiling, volumetric circular detection zone; – maximum installation height up to 3.6 m; – 110 elementary sensitive zones; – microprocessor-based signal analysis; – discrete adjustment of detecting ability; – temperature compensation; – wide operating temperature range; – resistance to external illumination not less than 6500 lx; – "alarm memory" mode; – case opening control; – optoelectronic relay. Those. specifications Technical data: – diameter of the detection zone 9 m – recommended installation height 2.4 ÷ 3.6 m – angle of the detection zone in the horizontal plane 360 ° – supply voltage 8 ÷ 15 V – consumption current, no more than 15 mA – resistance of the relay channel in standby mode, not more than 8 Ohm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С – degree of protection by shell IP41 in the "alarm memory" mode; "alarm in test mode"; "opening".

Features: power relay with three contacts (group of switchable contacts); memory for 99 RPD; 2 modes of relay operation: – opening (closing) contacts for a period of 2 s to 30 minutes, – opening (closing) contacts until the next command; built-in ( printed) antenna. Those. specifications Technical data: – operating frequency range 433.92 MHz ± 0.1% – supply voltage 10 ÷ 15 V – consumption current, not more than 60 mA – technical readiness time, not more than 10 s – maximum voltage switched by relay contacts at a load current of 1 A , not more than 250 V Operating conditions: – temperature from 0 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С – degree of protection by a shell IP30

Basic data: – 2 detection channels: volumetric optoelectronic (IR), surface sound (AK); – installation on the ceiling; – two optoelectronic relays; – microprocessor-based signal analysis; – "alarm memory" mode; – AK-channel testing mode ; – case opening control; – supply voltage control; IR: – volumetric circular detection zone; – 110 elementary sensitive zones; – resistance to external illumination at least 6500 lux; – discrete adjustment of the detecting ability. polymer film, – reinforced, patterned, multi-layer construction, hardened flat; – discrete sensitivity adjustment. Those. specifications Technical data: – diameter of the IR channel detection zone 9 m – detection range in the volume angle sector 120 ° from the center of the AK channel microphone 6 m – IR channel detection zone angle in the horizontal plane 360 ° – recommended installation height 2.4 ÷ 3.6 m – supply voltage 8 ÷ 15 V – consumed current, not more than 21 mA – resistance of the relay channel in standby mode, not more than 8 Ohm Operating conditions: – temperature from -20 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С – the degree of protection by the shell IP30 Informative value: "exit to the operating mode"; "norm – IR"; "alarm – IR"; "norm – AK"; "alarm – AK"; "supply voltage below the permissible"; "opening"; "increased level high frequency interference ";" increased level of low frequency interference ".

Basic data: – 2 detection channels: surface optoelectronic (IR), surface sound (AC); – miniature case; – microprocessor signal analysis; – optoelectronic relay; – "alarm memory" mode; – test mode of the AK channel; – case opening control; – supply voltage control; – complete with a ball bracket. IR: – surface detection zone (lens – "curtain"); – resistance to external illumination not less than 6500 lux; – temperature compensation; – discrete adjustment of the detecting ability. – detection of destruction of ordinary glass, protected by a polymer film, reinforced, patterned, multilayer building, tempered flat; – discrete sensitivity adjustment. Those. specifications Technical data: – range of the AK channel 6 m – range of the IR channel 5 m – recommended installation height up to 5 m – supply voltage 8 ÷ 15 V – current consumption, no more than 18 mA – resistance of the relay channel in standby mode, no more than 8 Ohm Operating conditions : – temperature from -20 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С – degree of protection by the shell IP30 alarm for the IR channel ";" alarm for the AK channel ";" alarm for the IR and AK channels simultaneously ";" tampering ";" increased level of interference at high frequency ";" increased level of interference at low frequency ";" supply voltage is lower than permissible ".

Basic data: – surface detection zone (lens – "curtain"); – no anti-tampering zone; – miniature body; – microprocessor-based signal analysis; – temperature compensation; – additional protection by a metal shield against electromagnetic interference; – "alarm memory" mode; – case opening control; – supply voltage control; – resistance to external illumination at least 6500 lux; – optoelectronic relay; – complete with ball bracket Technical specifications Technical data: – operating range 5 m – angle of the detection zone in the vertical plane 95 ° – angle of the detection zone in the horizontal plane 30 ° – recommended installation height up to 5 m – supply voltage 8 ÷ 15 V – consumption current, no more than 18 mA – resistance of the relay channel in standby mode 6 ÷ 8 Ohm Operating conditions: – temperature from -20 to + 50 ° С – relative humidity of air without condensation moisture up to 95% at + 35 ° С – degree of protection by the shell IP41 Informative value: "exit to standby mode"; "normal"; "alarm"; "alarm in memory mode" alarms ";" tampering ";" supply voltage below permissible ".

Features: – detection of destruction of: – concrete walls and ceilings with a thickness of at least 0.12 m, – brick walls with a thickness of at least 0.15 m, – wooden structures with a material thickness of 20 to 40 mm, – plywood with a thickness of at least 4 mm, – structures made of chipboards with a thickness of at least 15 mm; – registration of destructive effects produced by the following types of tools (according to GOST R 50862-2005): manual cutting, thermal cutting, electric cutting, electric shock, electric rotary with shock, electric shock; – smooth adjustment of sensitivity to vibration; – three test modes; – microprocessor-based signal analysis; – case opening control; – control of the detector's detachment from the surface; – metal bar and magnets for fastening included in the Tech. specifications Technical data: Operating frequencies: – first 3.15 ± 0.10 kHz – second 6.3 ± 0.1 kHz – sensitivity at operating frequencies 126 ± 2 dB Maximum operating range: – for concrete, brick, wooden surfaces 2.0 ± 0.1 m – for a metal cabinet, glass sheet 1.6 ± 0.1 m – for a metal armored safe 1.0 ± 0.1 m Maximum protected area: – when installed on a concrete, brick, wooden surface 13.8 m2 – when installed on the surface of a metal cabinet , glass sheet 9.0 m2 – when installed on the surface of a metal armored safe 3.1 m2 – supply voltage from 9 to 15 V – current consumption, no more than 25 mA – technical readiness time, no more than 10 s – overall dimensions 109х34х27 mm Parameters of signal relays: – permissible current 80 mA – permissible voltage 100 V – resistance of the relay output circuit in standby state, no more than 16 Ohm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С – degree of protection IP30 Informative value: "normal"; "alarm"; "shock detection"; "continuous impact detection"; "tampering"; "tear-off"; "supply voltage below normal"

Features: – storage in memory and indication (by sequential enumeration) of up to 99 numbers – radio transmitting devices RPD Astra-R (RPD); – indication of the discharge of RPD batteries; – accompaniment of indication with a sound signal; – forced reset of the received information; – when switching off power supply information is not saved. Those. specifications Technical data: – number of digits, no more than 2 – sign height, no more than 14 mm – supply voltage 10 ÷ 15 V – consumption current, no more than 130 mA – technical readiness time, no more than 5 s – overall dimensions 80x50x25 mm Operating conditions: – temperature from -30 to +50 ° С – relative air humidity up to 95% at + 35 ° С without moisture condensation

Organization of personal protection, security of objects and remote control by wireless transmission of notifications when pressing a button of small-sized radio transmitting devices and control of the relay of a radio receiving device when identifying a notification source. -R isp B (RPU) with a power relay with three contacts (a group of switchable contacts) and a memory for 25 RPDs Features: dynamic coding of messages using "keeloq" technology; 2 relay operation modes: – opening (closing) contacts for a period of 2 from up to 30 minutes, – opening (closing) of contacts until the next command. Those. specifications Technical data: – operating frequency range 433.92 MHz ± 0.1% – power of radio transmitting devices 10 mW – supply voltage RPU 10 ÷ 15 V – RPU consumption current, not more than 60 mA – RPU technical readiness time, not more than 10 s – RPD operating range in an open area (covered with dry soil) in the absence of powerful radio interference, at least 150 m – maximum relay voltage at a load current of 1 A, not more than 250 V Operating conditions: – temperature from 0 to + 50 ° С – relative humidity without moisture condensation up to 95% at + 35 ° С – degree of protection by enclosure IP30

Basic data: – detection of an inclination angle of 5-9 ° along three axes; – automatic recovery at a constant position for more than 8 seconds; – discrete adjustment of sensitivity to vibration; – microprocessor-based signal analysis; – two optoelectronic relays; – a miniature case of Tech. specifications Technical data: – supply voltage from 8 to 15 V – current consumption 12 mA – time of technical readiness 8 s – overall dimensions 70х33х16 mm Parameters of signal relays: – allowable current 80 mA – allowable voltage 100 V – resistance of the relay output circuit in standby state from 6 to 8 Ohm Operating conditions: – temperature from -30 to + 50 ° С – relative humidity of air without condensation moisture up to 95% at + 35 ° С – degree of protection by shell IP41 Information content: "normal"; "alarm-Strike"; "alarm-slope"

Basic data: – detection of destruction of ordinary glass protected by a polymer film – reinforced, patterned, multilayer building, tempered flat glass; – miniature case; – microprocessor-based signal analysis; – discrete sensitivity adjustment; – "alarm memory" mode; – optoelectronic relay; – installation on the wall, on the ceiling, between frames. Those. specifications Technical data: – operating range 6 m – supply voltage 8 ÷ 15 V – recommended installation height 2 m – resistance of the relay channel in standby mode 6 ÷ 8 Ohm – current consumption, no more than 18 mA Operating conditions: – temperature from -10 to + 50 ° С – relative humidity air without condensation moisture up to 95% at + 35 ° С – degree of protection by the shell IP30 Information content: "normal"; "alarm"; "increased level of interference at high frequency"; "increased level of interference at low frequency".

Features: dynamic coding of messages using "keeloq" technology; confirmation of the fact of pressing the button by indication for 5 minutes; built-in battery type CR2430; battery discharge indication Tech. specifications Technical data: – operating frequency range 433.92 MHz ± 0.1% – output power 10 mW – supply voltage from a built-in battery type CR2430, no more than 3 V – operating range in an open area (covered with dry ground) in the absence of powerful radio interference, not less than 50 m Operating conditions: – temperature from 0 to + 50 ° С – relative humidity of air without moisture condensation up to 95% at + 35 ° С

Features: power supply and alarm notification via two-wire alarm loop. Those. specifications Technical data: – supply voltage 3 ÷ 30 V – current consumption in standby mode at supply voltage 15 V, not more than 0.003 mA – current consumption in standby mode at supply voltage 30 V, not more than 0.01 mA – current consumption in mode alarm, not less than 5 mA – cable length 3 m Operating conditions: – temperature from 0 to + 50 ° С

Air handling unit with battery heat exchanger GOLD CX Complete air handling unit with direct-drive fans, filters for supply and exhaust air, and battery heat exchanger Air consumption up to 50 400 m³ / h Waste heat recovery unit assembled and filled at the factory (for sizes 35-80) Highly efficient protection Two new GOLD sizes (7 and 11) and optimized fan sizes make the choice of units more flexible – it is now easier to choose the optimal unit size for a specific project Revolutionary control system in the GOLD CX module: The most striking innovation is the revolutionary control system, IQlogic. In addition to new and user-friendly functions, there is the possibility of communication and control by means of a BMS as well as a laptop, tablet PC or mobile phone. To expand the functionality, additional IQlogic + modules can be connected. The GOLD CXGOLD concept is designed for comfortable ventilation and is used, depending on the type chosen, in public buildings, schools, kindergartens, offices, shops, banks, residential buildings, etc. Focus on new generation units E focuses on energy efficiency and installation flexibility, which is achieved by a large number of sizes and different air flow rates. GOLD is a serial complete unit for comfort ventilation, produced in several sizes. The unit has patented EC fans that meet the most stringent energy efficiency requirements, as well as an integrated IQnomic automation system with many energy-saving functions, including communication. The GOLD unit has a range of accessories such as dampers, air heaters, coolers, recirculation sections and chillers. The accessories are available for outdoor installation.

Neutronic is a unique means of protection against electromagnetic radiation from various household appliances. Neutronic is a passive antenna (screen) made of a conductive material, applied to a thin transparent base using a laser. The key property of this device is a double effect: • reducing the impact on the immune, central nervous, reproductive, endocrine systems, increasing the adaptive capabilities of the organism. • "synergistic" effect that occurs during mass replication of the device and reduces the overall electromagnetic tension in the environment.  "Neutronic" is a means of protection against electromagnetic radiation, which has no analogues in terms of efficiency and ease of use. It effectively eliminates the harmful effects of radiation on the body, while not deteriorating the original characteristics of the household appliances used. "Neutronic" is created on the basis of a unique technology obtained experimentally. Modern scientific knowledge and experimental data suggest the following principle of "Neutronica" operation. The "Neutronic" device is based on know-how – a patented spatial arrangement of lines projected onto a plane from a three-dimensional figure. This grid (matrix) is a passive antenna that converts and re-radiates electromagnetic waves. The Neutronic antenna is excited by the emitters of household appliances and creates its own secondary field, which, when interacting with the primary fields of the emitters, converts their radiation spectrum into a form that is safe for humans, that is, changes the directional pattern of the primary electromagnetic field. A complex ( nonlinear) picture of the distribution of electromagnetic intensity in the so-called "near zone", where the human head is located. It is dominated by various external interference ("electromagnetic noise"), which requires amplification of the transmitted signal to overcome. The generated electromagnetic field has a thermal effect on the head tissue, which can subsequently lead to the occurrence of pathologies. In addition, a vortex electric field is created in the "near zone", which affects all cells of the body and, over time, causes a change in their functional state. The cumulative thermal and vortex effect of the electromagnetic field disrupts homeostasis and leads to the emergence of severe diseases of the nervous system, oncology, dementia, etc. Thus, an effective protective device for the monitor and TV must solve two problems. "and thus help to reduce the heating of the head tissues. – To extinguish the vortex electric field in the" near zone "in antiphase, thereby reducing its effect on the cells of the body and preventing pathological changes. or other household appliance does not deteriorate. This is due to the fact that the level of signal reception depends on the ratio of the signal power and the power of electromagnetic noise. And the lower the noise power, the less signal power is required. "Neutronic" reduces electromagnetic noise in the "near zone", due to which a high-quality connection is established with a minimum signal power of a household appliance.

"Neutronic" is a unique means of protection against electromagnetic radiation of various household appliances. "Neutronic" is a passive antenna (screen) made of conductive material, applied to a thin transparent base using a laser. The key property of this device is a double effect: • reducing the impact on the immune, central nervous, reproductive, endocrine systems, increasing the adaptive capabilities of the organism. • "synergistic" effect that occurs during mass replication of the device and reduces the overall electromagnetic tension in the environment. "Neutronic" is a means of protection against electromagnetic radiation, which has no analogues in terms of efficiency and ease of use. It effectively eliminates the harmful effects of radiation on the body, while not deteriorating the original characteristics of the household appliances used. "Neutronic" is created on the basis of a unique technology obtained experimentally. Modern scientific knowledge and experimental data suggest the following principle of "Neutronica" operation. The "Neutronic" device is based on know-how – a patented spatial arrangement of lines projected onto a plane from a three-dimensional figure. This grid (matrix) is a passive antenna that converts and re-radiates electromagnetic waves. The Neutronic antenna is excited by the emitters of household appliances and creates its own secondary field, which, when interacting with the primary fields of the emitters, converts their radiation spectrum into a form that is safe for humans, that is, changes the directional pattern of the primary electromagnetic field. A complex (nonlinear) ) the picture of the distribution of electromagnetic intensity in the so-called "near zone", where the head of a person is located. It is dominated by various external interference ("electromagnetic noise"), which requires amplification of the transmitted signal to overcome. The generated electromagnetic field has a thermal effect on the head tissue, which can subsequently lead to the occurrence of pathologies. In addition, a vortex electric field is created in the "near zone", which affects all cells of the body and, over time, causes a change in their functional state. The cumulative thermal and vortex effect of the electromagnetic field disrupts homeostasis and leads to the emergence of severe diseases of the nervous system, oncology, dementia, etc. Thus, an effective protective device for a mobile phone must solve two problems: – Reduce the electromagnetic field strength in the "near zone" and, thus, help to reduce the heating of the head tissues. – To extinguish the vortex electric field in the "near zone" in antiphase, thereby reducing its effect on the cells of the body and preventing pathological changes. It should be noted that the quality of communication does not deteriorate. This is due to the fact that the level of signal reception depends on the ratio of the signal power and the power of electromagnetic noise. And the lower the noise power, the less signal power is required. "Neutronic" reduces electromagnetic noise in the "near zone", due to which a high-quality connection is established with a minimum signal strength of the phone.

VBShv cables meet the requirements of GOST 16442-80. The design of the VBShv series cable contains a conductive core made of copper wire, which has a sector or round shape. If the cross-section of the cable is 16 square millimeters and above, it contains a multi-wire conductor consisting of a twisted pair of conductors, or even three or four. PVC plastic insulates the wire strands from each other, but they are placed in a common PVC sheath, resistant to light and heat. The distinctive coloring of VBShv multicore cables helps to distinguish between conductors, two-color yellow-green conductors and blue zero conductors, as a rule, are grounded at the end. In addition to the upper armor coating, the belt insulation made of the same extruded PVC compound is, in essence, the very sheath of the cable of this series. If the cable has round conductors, PVC insulation simply fills in the voids between the passing conductors. The uppermost cover is provided with two spiral galvanized strips and an outer PVC plastic sheath that forms a cable-tight hose. VBShv cables are designed for the transmission and distribution of electrical energy in stationary electrical installations for a rated alternating voltage of 0.66, 1 and 3 kV, with a rated frequency of 50 Hz. VBShv can be used both indoors and outdoors, used in tunnels, mines, canals, underground. At the same time, the cable is laid in places where various mechanical damages are possible with the absence of tensile forces when using the model.

1. Copper conductive core (number of cores: 1, 2, 3, 3 + 1, 4 and 5 pcs.): – single-wire (class 1) with a cross section of 1.5-50 sq. mm – "stand-by"; – multi-wire (class 2) with a section of 50-240 sq. mm; 2. Insulation made of PVC plastic compound, core marking: – color: white or yellow, blue or green, red or crimson, brown or black, or yellow-green; – digital for cables with a cross section of 70 sq. mm and above: 0, 1, 2, 3, 4; 3. Non-woven fabric winding for multi-core cables with a cross-section of 16 sq. mm and above (production of cables without winding is allowed); 4. PVC sheath. Power cables are designed for the transmission and distribution of electrical energy in stationary installations for a rated alternating voltage of 0.66 kV and 1.0 kV at a frequency of 50 Hz or for a direct voltage 2.4 times the alternating voltage. Cables are manufactured for operation in areas with moderate, cold and a tropical climate. The cables are intended for operation on land, rivers and lakes at altitudes up to 4300 m above sea level. The VVG cable is used for laying: – in the air if there is no danger of mechanical damage during operation; – for laying in dry or damp rooms (tunnels), channels , cable half-floors, mines, collectors, industrial premises, partially flooded structures in the presence of an environment with low, medium and high corrosive activity; – for laying on special cable racks, on bridges and in blocks; – for laying in fire-hazardous premises; – for laying in explosive zones of class B-Ib, B-Ig, B-II, B-IIa; – cables with copper conductors are used for laying group lighting networks in explosive zones of class B-Ia. Cables are intended for vertical, inclined and horizontal routes. Non-armored cables can be used in places subject to vibration. Cables are flame retardant in single laying (IEC 60332-1 standards). The permissible heating of conductors in emergency mode should not exceed + 80 ° C and the duration of operation in emergency mode should not be more than 8 hours per day, but not more than 1000 hours per service life. The service life of the VVG cable is 30 years.

OJSC SPEKTR carries out R&D work according to the technical requirements of customers with subsequent approval of the design documentation (the service is free) After that, in the long term, you can order in any quantity (from 5 pieces) of products: 1. DRY 1/3-phase (1- 400) W power transformers for mains frequency 50, 400, 1000 Hz GOST 14233-84; Insulation strength – 4000 V Eff. Any output parameters within the capacity of the standard size, Additional services according to customer requirements: Increased fire safety requirements – Installation of a thermal fuse. Increased requirements for sealing – Impregnation and varnishing with organosilicon varnish KO-835. (according to the technology of the "Dimension" type). Increased mechanical requirements – Installation of tie straps. Increased requirements for no-load current – Grinding of the magnetic circuit. The probability of increased mains voltage (at night) over 220V + 10% in accordance with GOST 13109-87 – recalculation of the number of turns of the primary winding. If necessary – Install the screen. 2.sonic TVZ-, TAMU in accordance with GOST 14234-84; 3. current transformers TT GOST 7746-2001; 4. three-phase transformers NTL; 5. chokes type DR; 6.pulse TI, TPI, TPV on ferrite cores using domestic and imported equipment; 7.Magnet pipelines (50, 400, 1000 Hz) of any geometry according to the customer's sketch, including: according to GOST 22050-76 type ШЛ, ШЛМ, ПЛ, ПЛМ, ПЛР-; according to TU 3400-001-23535494-2010, GOST 204011-80 type OL-; according to TU 6391-003-23535494-2010 OST 4GO.480.000 type TL-. At a network frequency of 50 Hz made of electrical steel 0.3-N-1-ET- (A) -3407-GOST 21427.1-83. At a network frequency of 400 Hz made of electrical steel 0,15-TO-ET-3425-GOST 21427.4-78. At a network frequency of 1000 Hz made of steel 0.1-TO-ET-3425-GOST 21427.4-78. We do an additional service: With increased requirements for no-load current – grinding the ends of the magnetic circuit. 8. Network adapters (Power supplies) Any output parameters within the usable power range. TU 6589-003-23535494-2003 – stabilized BP type – .. TU 6589-004-23535494-2004 – unstabilized BPN type – .. TU 6589-005-23535494-2006 – BPP type variables – .. TU 3468-001- 23535494-2006 – chargers AZU- .. Products are used in products for household, medical, general industrial and special purposes. Direct deliveries to all regions of the Russian Federation, within the framework of the Customs Union, WTO. The products are used in household, medical, general industrial and special purpose products. Direct deliveries to all regions of the Russian Federation, within the framework of the Customs Union, WTO.

The device for robotic mechanotherapy of the lower extremities model Flex – F01 It is used to prevent complications after prolonged immobilization, treatment after injuries and fractures, joint diseases. In the postoperative period, it restores joint mobility, promotes a quick, painless recovery. During treatment, the knee development apparatus forces the leg joints to bend to a predetermined angle without the patient's muscles working. It is recommended to start exercising on the simulator in the early postoperative period. This contributes to the rapid restoration of range of motion, and the return of the patient to the usual way of life. The settings of the knee rehabilitation simulator allow you to set individual parameters for the rehabilitation of patients. The device is universal, suitable for both right and left legs. Equipped with patient protection in case of spasms and seizures. Flex-F01 allows for pain-free joint development, while guaranteeing physiologically correct, natural joint movements. The Ormed Flex knee rehabilitation trainer has been designed to meet the requirements of medical institutions: all surfaces in contact with patients are easily disinfected all mechanical adjustments the positions of the Ormed Flex apparatus are carried out effortlessly and without additional tools. Those. specifications Indicator name Norm Time of readiness for operation after switching on, min., no more than 0.5 Allowable angle of inclination in any direction during use, no more than Nominal supply voltage, В220 + 10% Nominal value of the supply mains frequency, Hz50 Maximum consumption current, А2 Weight, kg, no more than 14 Power consumption, W, no more than 75 Overall dimensions (length, width, height), mm, no more than 1100х500х500 Amplitude of movement of extension / flexion: knees from 10 ° to 120 °; hips from 7 ° to 115 ° Continuous work time, hours no more than 8, followed by break for at least 30 minutes Degree of protection, not less than IP21 according to GOST 1425496 Suitability for washing and disinfection is provided Requirements for electromagnetic compatibility according to GOST R IEC60601122014 (class A, group 1 according to GOST R 51318.112006)

Vertu Signature New Touch for Bentley 64-bit operating system Android 6.1 Lollipop Original Skin® is characterized by increased speed and improved security features.DimensionsLength: 155 mmHeight: 10.8 mmWidth: 74 mmWeight: 225gDesign featuresOperating system: Android 6.1 Lolipop (Vertu Original Skin®)Processor: eight-core 64-bit processorThe back slot of the SIM card loads Gullwing – a complex mechanism for which the nano-SIM and micro SD slots are hidden.D-Ring, a masterpiece of English engineering.Form Factor SIM Card: NanoSIMThe presence of a GPS and accelerometer.Memory 128 GBBattery capacity: built-in rechargeable lithium-ion battery with a capacity of 3160 mAhUp to 21 hours of talk time in the GSM systemUp to 520 hours of standby time.Data transfer and data transferFour GSM bands: 850/900/1800/1900 MHzDC-HSPA + Releas3G, GPRS, POP / SMTP client, web browser, 4G LTE-A FDD / TDD 10 Cat6 (download 300 Mbps, send 50 Mbps)Interfaces: Wi-Fi, Bluetooth 2.0, Micro USB.Support MMS / SMS.Possibility of synchronization with the computer.The memory of the phone book is not limited. Main characteristics 21-megapixel camera with a phase autofocus and a dual two-color LED flash.Front: wide-angle camera.2.1 mp.Challenges.Melodies: polyphonic melodies, performed by the London Symphony Orchestra, MP3-tunasVibration alert.Language support: English, French, German, Spanish, Italian, Arabic, Indonesian, Chinese, Portuguese, Turkish, Ukrainian, Finnish, Swedish, Norwegian, Danish.Attention: language support depends on the region of your presence.MATERIALS Typehousing candy bar with touch screenMaterialsCeramics, high-quality tool from carbon steel Raccorderie Metalliche (Italy)Using your phone does not affect your health.technologicalassembly Precise assembly using Solidcraft technology, ensuring the integrity of the constituent elements.displayhigh-contrast display with high contrast (1080p, 428ppi) with a diagonal of 5.2 inches, protected by Gorilla Glass (Class4-polimorf).soundHighmans Axiom high-definition stereo speakers Hi-Fi (13 x 18 mm) with surround sound technology Dolby® Digital Plus Has an incredible sound thanks to noise reduction and surround sound.To suppress the noise in the conversation, three microphones and high-definition sound transmission technology.Frontal stereo speakers reproduce sound without distortion, even at maximum volume.The volume control is specially designed for easy management of the specified Dolby® profiles. How to buy this smartphone.1. Write the request and specify the quantity.2. I will write you the account number of our bank for payment of T / T3. After payment, send me a photo of the receipt.4. Inform your detailed address for delivery.5. After sending, I will send you a photograph of the receipt and tracking number for your parcel.The order is issued approximately 15 – 20 days.

Your own cardio complex at home, at work, on vacation! It fits in the palm of your hand and gives you the opportunity for a few minutes to get the information on the work of the heart, heart rate and stress levels every day at any time.Miniature device for rapid monitoring of the condition of the cardiovascular system-made in the form of a usual USB flash drive of just 9 grams-captures data on heart work corresponding 6 standard leads-includes four electrodes that are easy to place on your own body-connects to an Android device with a standard OTG-cable-connects to an iOS device (up to 9) with a special adapter-does not have its own battery, runs on battery power of your smartphone or tablet-with detailed instructions included.FREE MOBILE APP ECG DONGLEYou download the app from Google Play or App Store, install it on the smartphone or tablet just for 1 minute and it is immediately ready to work -displays the real-time heart dynamics-displays the heart rate and the level of tension (stress)-allows you to save the measurements and to send them to the cloud service «CardioCloud» -in order to obtain the opinion of a cardiologist-provides the ability to save the research data as PDF, MIT-BIH or EDF format for sending to your doctor (for Android 4.4 and above).CARDIOCLOUDThe cloud service is designed for the interaction between ECG Dongle device users and expert cardiologists of «CardioCloud». The Service allows you to get the opinion of a cardiologist on the condition of your cardiovascular system based on the information obtained by the user with the USB gadget and the mobile application-does not require personal information, ensuring the anonymity of treatment-provides the ability to export the measurements in PDF format for saving and printing-payment is made by credit card, electronic money or through mobile shopping apps-doctor's opinion is to be sent to the user’s email-allows to send data directly to your doctor email Тех. спецификации ECG Dongle allows you to simply and accurately obtain the state of your heart. With the mobile application and the «CardioCloud» service, you can easily send obtained measurements to a cardiologist and quickly get his opinion on the state of cardiovascular system of adults and children over 12 years.Equipment• The ECG Dongle device to record data on the work of the heart. • OTG-cable to connect to smartphones and tablets, equipped with micro-USB. * • Cable to connect electrodes to the device. • Four reusable electrodes to place on the body and record bio potentials of the heart.System requirements for the mobile application • The tablet or smartphone that supports connection of USB-devices (USB OTG standard). • Android operating system 4.2 or later versions. Saving the results to PDF is available for Android 4.4 and later version. • Internet connection to download free app and send data to the cloud service on order to get a doctor’s opinion. • 15 MB of RAM and 15 MB of memory to install the app.Using electrodes How well the electrodes are attached to the body reflects the accuracy of the data. For a better attachment of the electrodes we recommend preliminary clean the skin with an alcohol swab. If the adhesive surface of the electrode is dirty and it is impossible to fix it on the body, wash out the electrodes with soap and dry to recover its property. To prevent drying of the surface of reusable electrodes, keep the protective envelopes and attach them to the electrodes every time after using. Keep electrodes in a sealed bag. The electrodes are consumable, if they lose working properties you need to buy another set of reusable or disposable electrodes for further use.* Adapters to connect to tablets and smartphones equipped with other than USB and micro-USB connectors, are not included. Check the information of how to connect USB-devices to them.Functionality • Heart rate and stress levels measurement. • Display the heart work in real time. • A free mobile application for Android. • Send the data to the service «CardioCloud» to get a cardiologist’s opinion.Precaution • Do not use ECG Dongle at temperatures above +55°C or below +5°C. • Do not expose the device to excessive mechanical load: falling, squeezing, shaking. Do not exert significant force while connecting plugs – this can damage them.• Avoid exposure of any liquids on the ECG Dongle device. You can wash reusable electrodes with soap after you disconnect the wires. • Do not keep the device in direct sunlight, near air conditioner, electric heater or other heat sources, in zone of strong magnetic fields or excessive vibration.Specification • Size (LхWхH): 65 mm х 22 mm х 9 mm. • Weight: 9 g. • Hard Drive: none. • Power supply: from the mobile device via the USB-connector. • Warranty: 1 year.Produced by CJSC Nordavind, Russia.

The air sprinkler control unit is designed to work in water and foam fire extinguishing installations, it supplies fire extinguishing liquid, gives a signal to generate a command impulse to control the elements of fire automatics (pumps, a warning system, turn off the fans, etc.) The air sprinkler control unit is designed for works in water and foam fire extinguishing installations, supplies fire extinguishing liquid, issues a signal to form a command impulse to control the elements of fire automation (pumps, warning system, shutdown of fans, etc.), and also monitors the status and checks the performance of these installations in the process exploitation. Air sprinkler control units are used at facilities with both positive and negative temperatures.

The water-filled sprinkler control unit "Shaltan" is designed to operate in water and foam fire extinguishing sprinkler installations, supplies fire extinguishing liquid in stationary automatic installations, issues a signal about operation and to turn on the fire pump. The unit is designed to operate in conditions of positive temperatures +5 and above.

The modular fire pumping unit is designed to supply fire extinguishing agent to the fire water supply network and external fire extinguishing of buildings and structures, technological equipment, warehouses, etc. The possibility of integrating the MPNU into the automatic fire extinguishing system is carried out using the built-in RS-485, Ethernet interfaces.For a comprehensive solution for supplying OTV to the AUP, we recommend purchasing: – modular fire pumping unit with automation; – control unit module; – drainage unit; – unit of mobile fire fighting equipment. Possibility of completing control cabinets according to customer requirements with individual software configuration: – Possibility of registering the operation of the MPNU and keeping an event log; – Possibility of integration into a general fire extinguishing system with data transmission via the open MODBUS RTU protocol; – Remote start and control via the RS-485 interface; – continuous monitoring of the operability and diagnostics of malfunctions of all elements of the system; – ease of maintenance due to the visual display of the state of the system.

The foam concentrate supply module is designed for microprocessor-based dosing of the foam concentrate and obtaining a working solution of a given concentration in fire extinguishing systems with a variable flow rate (sprinkler). Functionality and features: – the use of water with the addition of a wetting agent based on a foam concentrate allows to reduce the irrigation intensity and the flow rate is 1.5 times less than for sprinkler systems; – there is no reference to the main pump; – the tank for storing the foam concentrate is without excess pressure; – visual and automatic control of the level of the spent foam concentrate; – the possibility of mixing and refilling the foam concentrate; – individual settings of the control cabinet software according to the customer's request: the possibility of registering the work of the MPP, keeping a protocol of events.

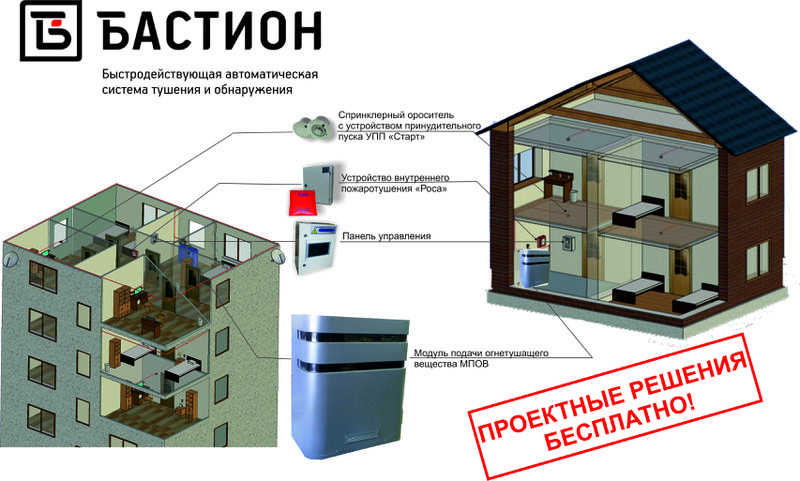

The fast-acting automatic fire extinguishing system "Bastion" is designed for complex fire protection: private houses, cafes, shops, utility and office premises, medical institutions, etc. (class A fire) due to super-early fire detection, forced start-up, localization and automatic extinguishing of a fire with a small volume of finely sprayed water or an aqueous solution in a time of no more than 5 minutes with the formation of control commands to external circuits using relay contacts, RS-485 interface, and in the form of SMS or voice messages to a mobile phone of one or several mobile operators.

The digital terrestrial receiver BarTon TH-562 with a built-in DVB-T2 tuner is designed to receive high-definition open-air broadcasting channels. The range and quality of reception depends on the location of the receiving antenna, transmitter power, terrain, season, level of interference and other factors. Receivers have been tested for operability in the RTRS digital terrestrial television network in the DVB-T2 standard A receiver with a built-in USB port turns a TV to the media center, allowing you to play media files from an external carrier. The receiver is equipped with a display for displaying the switched on channel. Produced in Russia at the NPO TsTS plant, Gusev, Kaliningrad region. The external design of the box and the start screen of the receiver is discussed. Technical capabilities of the receiver: Recording. Allows you to record TV programs to an external USB drive. Multimedia. Allows you to view photo and video content and play music. Program guide. Allows you to view on the screen a list of TV and radio programs with a description of the program. continuous background recording of the selected channel, as well as call Makes a pause in viewing and continue viewing from the skipped place. Allows you to add, view, edit and delete tasks for recording or watching TV programs on a schedule. Teletext. Allows the display of text information on a TV screen using a standard TV network (this service is provided by the broadcaster). Those. Specifications DVB-T / T2 Standard, SD / HD MPEG4 Support, Multiple PLP Mode, Teletext, Recording Timer, Time Shift, Parental Key, Media Viewer, USB 2.0 Processor: MSD7T01 Tuner: RT836 Input Range frequencies: 174-230 MHz; 470-862 MHz Input level signal: – 83 ~ 5 dB / m Bandwidth: 6 MHz, 7 MHz, 8 MHz Modulation: QPSK, 16QAM, 64QAM, 256QAM Video format: MPEG4 AVC / H.264 [email protected] Audio format: MPEG1, level 1/2, MPEG 4 HE AAC v. 1/2 Interfaces: 3.5mm TRRS (video: CVBS; audio: L / R), HDMI, USB 2.0 Antenna input: IEC 169-2 (TV jack) Supported file types for USB storage: Video: MPEG1 , MPEG2, MPEG4, H264, Motion JPEG (.avi, .mpg, .dat, .vob, .div, .mov, .mkv, .mjpeg, .ts .trp) Audio: WMA, MP3, AAC (.wma, .mp3, .m4a) Images: BMP, JPEG, PNG Power: In. voltage DC 5V / 2A Power consumption 10 W max. Climatic version: Operating temperature: from 5 to +45 ºС Relative humidity: up to 80% (at +20 ºС)

The digital terrestrial receiver BarTon TA-561 with a built-in DVB-T2 tuner is designed to receive open-air high-definition broadcasting channels. The range and quality of reception depends on the location of the receiving antenna, transmitter power, terrain, season, level of interference and other factors. Receivers have been tested for operability in the RTRS digital terrestrial television network in the DVB-T2 standard A receiver with a built-in USB port turns a TV to the media center, allowing you to play media files from an external carrier. Produced in Russia at the NPO TsTS plant, Gusev, Kaliningrad region. The external design of the box and the start screen of the receiver is discussed. Technical capabilities of the receiver: Recording. Allows you to record. TV programs to an external USB drive. Multimedia. Allows you to view photo and video content and play music. Program Guide. Allows you to view the list of TV and radio programs with a description of the program. allows you to pause the viewing and continue viewing from the skip puppy place. Schedule. Allows you to add, view, edit and delete tasks for recording or watching TV programs on a schedule. Teletext. Allows the display of text information on a TV screen using a standard TV network (this service is provided by the broadcaster). Those. Specifications DVB-T / T2 Standard, SD / HD MPEG4 Support, Multiple PLP Mode, Teletext, Recording Timer, Time Shift, Parental Key, Media Viewer, USB 2.0 Processor: MSD7T01 Tuner: RT836 Input Range frequencies: 174-230 MHz; 470-862 MHz Input level signal: – 83 ~ 5 dB / m Bandwidth: 6 MHz, 7 MHz, 8 MHz Modulation: QPSK, 16QAM, 64QAM, 256QAM Video format: MPEG4 AVC / H.264 [email protected] Audio format: MPEG1, level 1/2, MPEG 4 HE AAC v. 1/2 Interfaces: 3.5mm TRRS (video: CVBS; audio: L / R), HDMI, USB 2.0 Antenna input: IEC 169-2 (TV jack) Supported file types for USB storage: Video: MPEG1 , MPEG2, MPEG4, H264, Motion JPEG (.avi, .mpg, .dat, .vob, .div, .mov, .mkv, .mjpeg, .ts .trp) Audio: WMA, MP3, AAC (.wma, .mp3, .m4a) Images: BMP, JPEG, PNG Power: In. voltage DC 5V / 1.5A Power consumption 8 W max. Climatic version: Operating temperature: from 5 to +45 ºС Relative humidity: up to 80% (at +20 ºС)

X-ray television introscopes (RTI) are used to detect items prohibited for carriage by air: in hand luggage and baggage of air passengers, cargo, mail and on-board supplies. They must have technical characteristics that ensure the detection parameters determined by the "Certification requirements for special technical means of ensuring aviation security", put into effect by the FAS of Russia on 12.02.1997. and comply with the specified characteristics and their technical descriptions. Those. specifications Test object TO-1 is a three-stage aluminum wedge 90 mm long and 100 mm wide, with steps of 4.8 mm, 7.9 mm, 11.1 mm, behind which are placed 5 copper wires with a diameter of 0.1 mm; 0.25 mm; 0.19 mm; 0.15 mm; 0.12 mm. When checking on the introscope, the diameter of the wire and the step behind which it is visible are determined (the test object is used to determine the detective ability of the introscope). The detecting ability is the minimum diameter of the copper wire detected under the aluminum wedge. Test object TO-2. It consists of two containers made of plexiglass, measuring 25x40x45 mm, filled: the first with sodium chloride NaCl, the second with sugar. When checking the introscope, a different coloration of the images of these containers should be observed on the monitor screen. (The test serves to determine the discriminating ability of the introscope.) The discriminating ability is the ability to distinguish materials with different atomic numbers by the color of the staining on the screen of the introscope: usually organic (yellow-orange) and inorganic (blue-green). -3. It is a 50 x 175 mm steel wedge with seven steps, thickness: 20 mm; 22 mm; 24 mm; 26 mm; 28 mm; 30 mm; 32 mm. Under the wedge along its entire length there is a lead plate 1 mm thick and 10 mm wide. When checking the introscope, the step of the wedge is determined, behind which the lead strip is still visible. The thickness of this step determines the penetrating power of the introscope radiation. The penetrating ability is the maximum thickness of the step of the steel wedge, transparent for X-ray radiation. Test-object-TO-4. It is a brass plate 80x80x1 mm. There are slits in the plate, which form line gratings with the parameters of 0.5 pairs of lines / mm, 0.33 pairs / lines and 0.25 pairs / lines mm. On the screen of the introscope, it is checked on which gratings the slits are distinguished (allowed). This test is used to check the resolution of the introscope. Resolution – the dimensions of the copper grating stripes, distinguishable on the monitor screen (pairs of lines per mm). Test object TO-5. It consists of three steel plates, each 25×30 mm in size and 0.15 mm thick; 0.1 mm; 0.05 mm. This test determines the linearity of the penetrating power of the introscope for small thicknesses. At the same time, three gradations of density of blue-gray color are visible on the monitor screen, depending on the thickness of these plates. This kit does not require special maintenance.

Technical description of the composition and design of a set of test objects The set of test objects must contain 12 metal test objects of different colors. Three test objects in the form of magnetic steel plates and nine test objects in the form of cylinders of magnetic (40ХНМА) and non-magnetic (12ХА18Н9Т) stainless steel. The test objects made of non-magnetic stainless steel are characterized by a circular groove or cut. The colors of the staining of the test objects correspond to the five security levels adopted in civil aviation. Safety level 1 (lowest) – blue test object made of magnetic steel, L-shaped, welded from two cylinders with a diameter of 25.4 mm and a length of 152.4 and 76.2 mm Safety level 2 – two green test objects – (one of magnetic steel and the other of non-magnetic steel), L-shaped, welded of two cylinders with a diameter of 25.4 mm and a length of 127 and 50.8 mm Safety level 3 – two yellow test objects – (one of magnetic steel and the other of non-magnetic steel), L-shaped, welded from two cylinders with a diameter of 25.4 mm and a length of 76.2 and 50.8 mm. Safety level 4 – three test objects in orange. Two test objects – (one of magnetic steel and the other of non-magnetic steel), L-shaped, welded from two cylinders with a diameter of 25.4 mm and a length of 50, 8 and 25.4 mm and the third test object – in the form 20 mm magnetic steel plates measuring 152.4 x 19 x 1.52 mm (simulated knife blade) Safety level 5 – Three red test objects. Two test objects – (one of magnetic steel and the other of non-magnetic steel), in the form of cylinders with a diameter and length of 25.4 mm, and the third test object – in the form of a plate of 20 magnetic steel, measuring 50.8 x 19 x 1, 52 mm (pocket knife blade simulator).

Technical description of the composition and design of a set of test objects The set of test objects must contain 12 metal test objects of different colors. Three test objects in the form of magnetic steel plates and nine test objects in the form of cylinders of magnetic (40ХНМА) and non-magnetic (12ХА18Н9Т) stainless steel. The test objects made of non-magnetic stainless steel are characterized by a circular groove or cut. The colors of the staining of the test objects correspond to the five security levels adopted in civil aviation. Safety level 1 (lowest) – blue test object made of magnetic steel, L-shaped, welded from two cylinders with a diameter of 25.4 mm and a length of 152.4 and 76.2 mm Safety level 2 – two green test objects – (one of magnetic steel and the other of non-magnetic steel), L-shaped, welded of two cylinders with a diameter of 25.4 mm and a length of 127 and 50.8 mm Safety level 3 – two yellow test objects – (one of magnetic steel and the other of non-magnetic steel), L-shaped, welded from two cylinders with a diameter of 25.4 mm and a length of 76.2 and 50.8 mm. Safety level 4 – three test objects in orange. Two test objects – (one of magnetic steel and the other of non-magnetic steel), L-shaped, welded from two cylinders with a diameter of 25.4 mm and a length of 50, 8 and 25.4 mm and the third test object – in the form 20 mm magnetic steel plates measuring 152.4 x 19 x 1.52 mm (simulated knife blade) Safety level 5 – Three red test objects. Two test objects – (one of magnetic steel and the other of non-magnetic steel), in the form of cylinders with a diameter and length of 25.4 mm, and the third test object – in the form of a plate of 20 magnetic steel, measuring 50.8 x 19 x 1, 52 mm (pocket knife blade simulator).
